D-Pillar Trim Panel - 4-Door: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions .

  2. Remove the parcel shelf. Refer to: Parcel Shelf  .

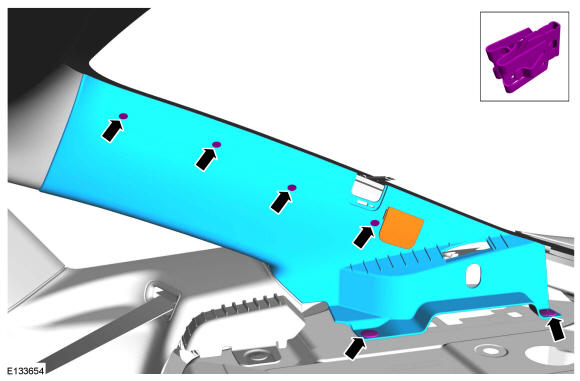

  3. Remove the retainers, release the clips and remove the D-pillar trim panel.
GFD269983Courtesy of FORD MOTOR COMPANY
