C-Pillar Upper Trim Panel: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: RH side shown, LH side similar.

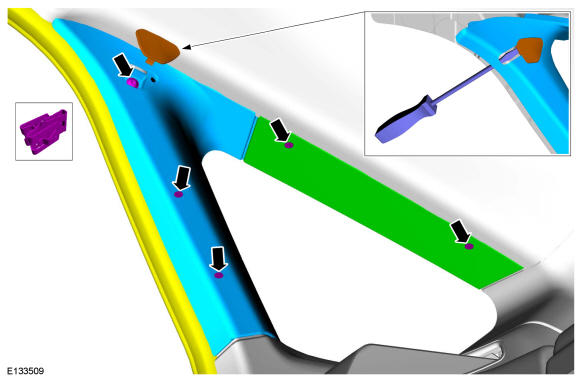

  1. Remove the upper C-pillar trim panel.

    • Position aside the rear door weatherstrip.

    • Release the clips and remove the quarter window trim panel.

    • Remove the retainer cover.

    • Remove the retainer, release the clips and remove the upper C-pillar trim panel.

GFD269982Courtesy of FORD MOTOR COMPANY
