C-Pillar Trim Panel - 5-Door: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. If equipped, remove the cargo cover.
    GFD269584Courtesy of FORD MOTOR COMPANY
  2. Remove the C-pillar upper trim panel. Refer to: C-Pillar Upper Trim Panel .

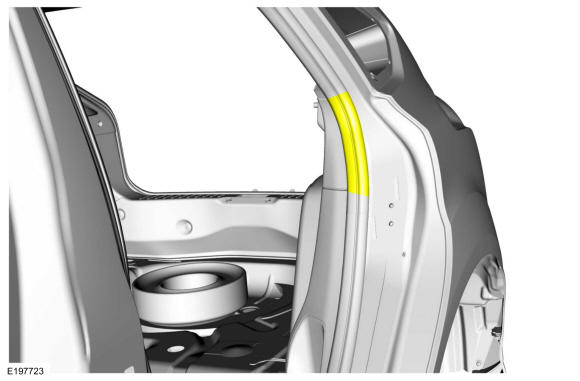

  3. Position aside the rear door weatherstrip.
    GFD269974Courtesy of FORD MOTOR COMPANY

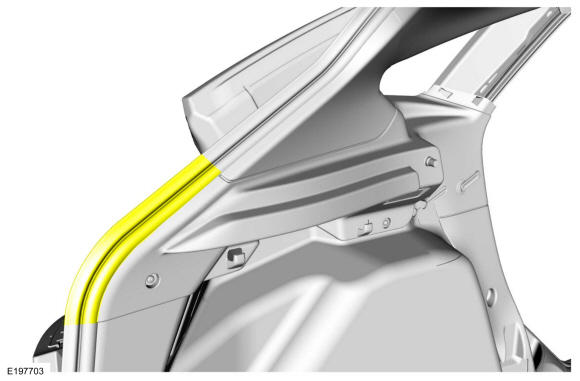

  4. Position aside the liftgate weatherstrip.
    GFD269975Courtesy of FORD MOTOR COMPANY

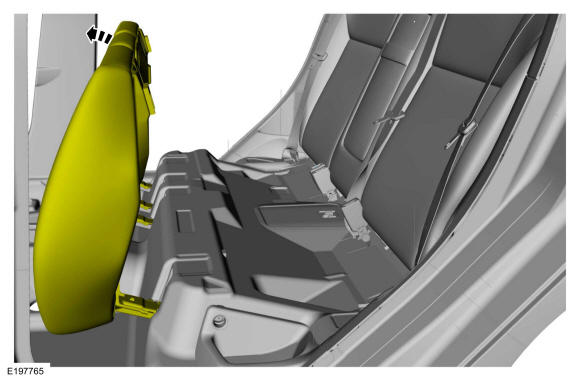

  5. Raise the rear seat cushion.
    GFD269976Courtesy of FORD MOTOR COMPANY

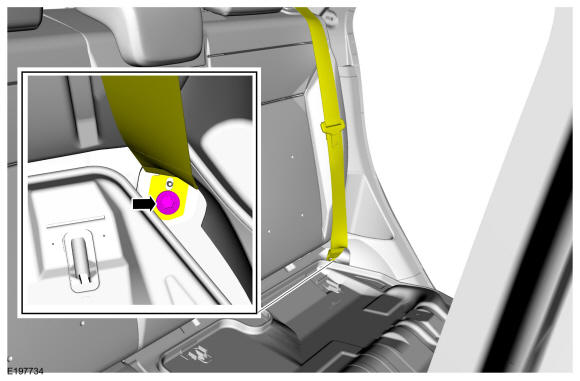

  6. Remove the anchor bolt and position the rear safety belt aside.

    Torque

    : 35 lb.ft (48 Nm)

    GFD269977Courtesy of FORD MOTOR COMPANY
  7. Lower the rear seat cushion.
    GFD269978Courtesy of FORD MOTOR COMPANY

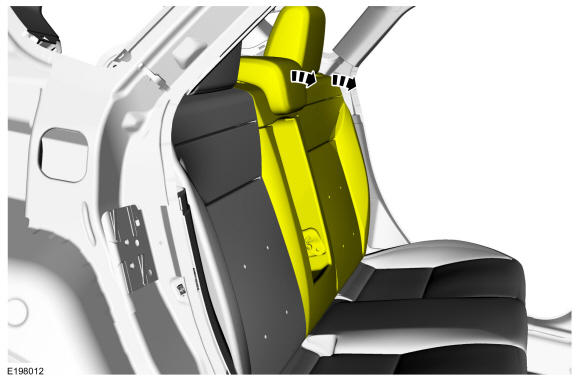

  8. Lower the rear seat backrest.
    GFD269979Courtesy of FORD MOTOR COMPANY

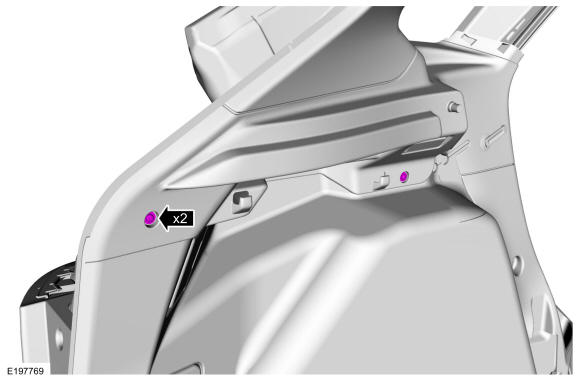

  9. Remove the retainers.
    GFD269980Courtesy of FORD MOTOR COMPANY

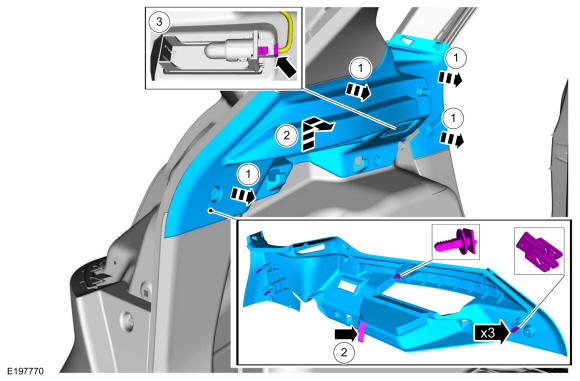

    1. Release the clips.
    2. Release the tab.
    3. Disconnect the electrical connector and remove the C-pillar trim panel.
GFD269981Courtesy of FORD MOTOR COMPANY
