C-Pillar Trim Panel - 4-Door: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions .
Remove the D-pillar trim panel. Refer to: D-Pillar Trim Panel - 4-Door .
Remove the upper C-pillar trim panel. Refer to: C-Pillar Upper Trim Panel .
Vehicles with full bench rear seat
NOTE: When installing the seat cushion, press firmly downward until an audible click is heard.

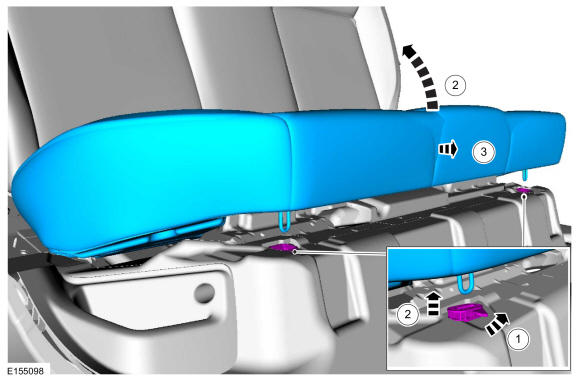

Remove the rear seat cushion.
1. Release the front clips.
2. Lift up to disengage the front of the cushion assembly.
3. Remove the rear seat cushion.
Courtesy of FORD MOTOR COMPANY

All vehicles

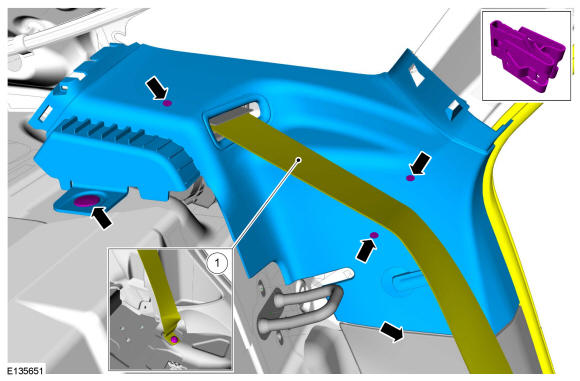

Remove the C-pillar trim panel.
1. Remove the bolt and position aside the rear safety belt.
  Torque

  : 35 lb.ft (48 Nm)
- Position aside the rear door weatherstrip.
- Remove the retainer, release the clips and remove the D-pillar trim panel.

Courtesy of FORD MOTOR COMPANY
