C-Pillar Lower Trim Panel: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LH side shown, RH side similar.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions .

  2. Position aside the read door weatherstrip, release the clips and remove the rear door scuffplate trim panel.
    GFD266966Courtesy of FORD MOTOR COMPANY
  3. Remove the C-pillar trim panel. Refer to: C-Pillar Trim Panel - 4-Door  . Refer to: C-Pillar Lower Trim Panel  .

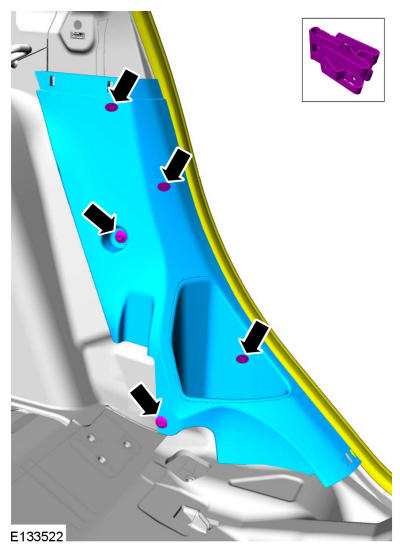

  4. Position aside the read door weatherstrip, release the clips and remove the C-pillar lower trim panel.
GFD269971Courtesy of FORD MOTOR COMPANY
