A-Pillar Trim Panel: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH side shown, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions .

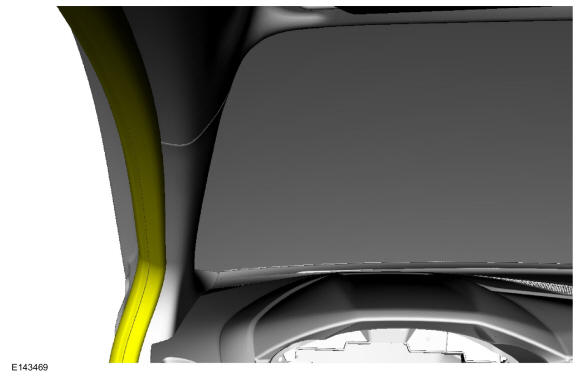

Position aside the front door weatherstrip.

Courtesy of FORD MOTOR COMPANY

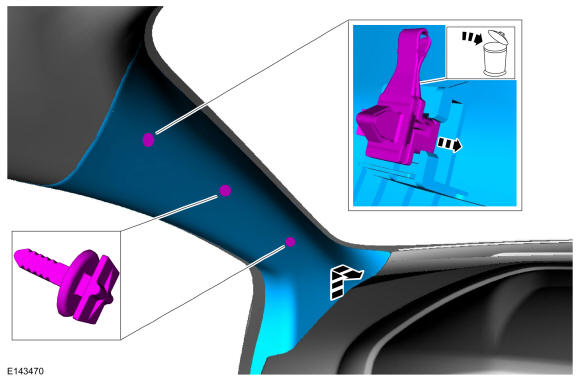

NOTE: The A-pillar trim panel 2-stage high-retention clip must be replaced when the A-pillar trim panel is serviced.

Release the clips, slide up and out, and remove the A-pillar trim panel.

Courtesy of FORD MOTOR COMPANY
