Removal And Installation: Fender: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions .

  2. Remove the cowl panel grille. Refer to: Cowl Panel Grille  .

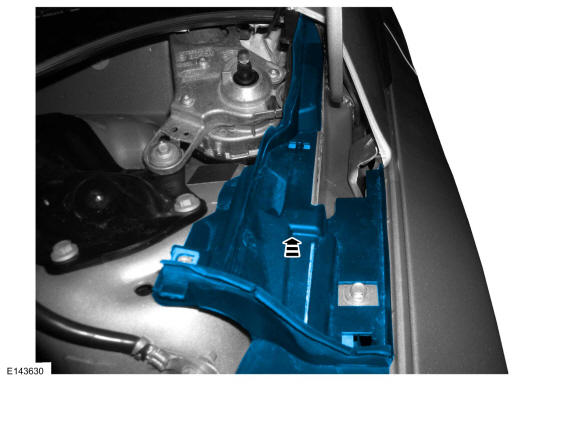

  3. Remove the cowl filler panel.
    GFD269893Courtesy of FORD MOTOR COMPANY
  4. Remove the headlamp assembly. Refer to: Headlamp Assembly .
  5. Remove the fender splash shield. Refer to: FENDER SPLASH SHIELD
  6. Remove the fender-to-bumper cover bolts.
    GFD269894Courtesy of FORD MOTOR COMPANY
  7. Remove the front fender bracket bolts.
    GFD269895Courtesy of FORD MOTOR COMPANY
  8. Remove the rocker panel moulding. Refer to: Rocker Panel Moulding .
  9. Remove the lower rear fender bracket bolts.
    GFD269896Courtesy of FORD MOTOR COMPANY
  10. Remove the fender-to-A-pillar baffle.
    GFD269897Courtesy of FORD MOTOR COMPANY
  11. Remove the lower A-pillar bolt.
    GFD269898Courtesy of FORD MOTOR COMPANY

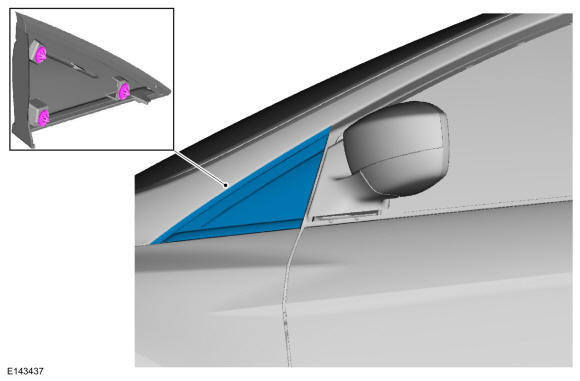

  12. Remove the retainers and the door frame moulding.
    GFD269899Courtesy of FORD MOTOR COMPANY
  13. Remove the upper A-pillar bolt.
    GFD269900Courtesy of FORD MOTOR COMPANY
  14. Remove the fender-to-apron bolts and the fender.
GFD269901Courtesy of FORD MOTOR COMPANY
