Removal And Installation: Fender: Installation
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

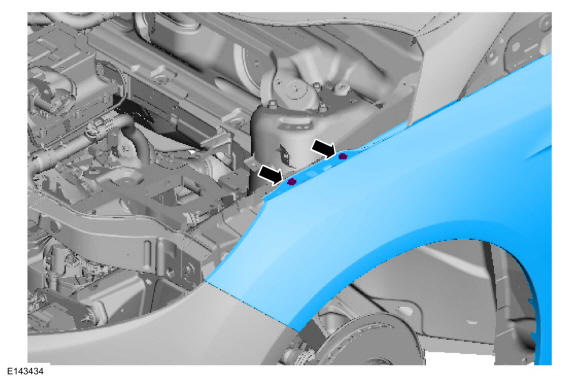

- Position the fender on the vehicle and loosely install the fender-to-apron bolts.
- Loosely install the upper A-pillar bolt.
- Loosely install the lower A-pillar bolt.

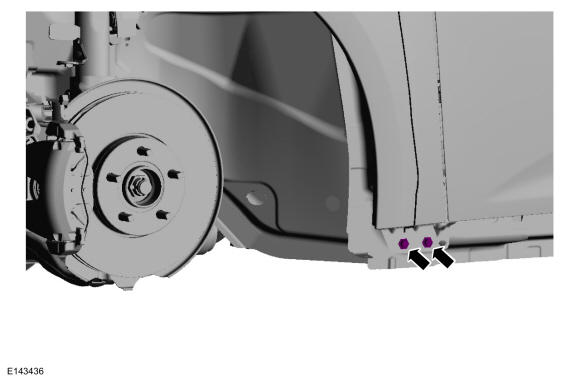

- Loosely install the lower rear fender bolts.

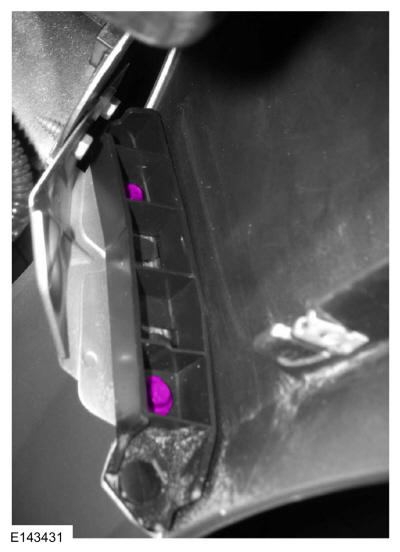

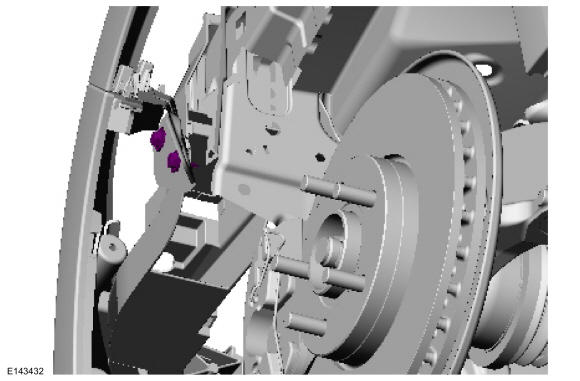

- Loosely install the front fender bracket bolts.

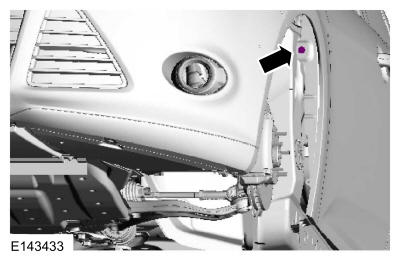

- Loosely install the fender-to-bumper cover bolts.
- Adjust the fender to specification. Refer to: Body and Frame .
- Tighten all fender fasteners.
Torque
: 53 lb.in (6 Nm)

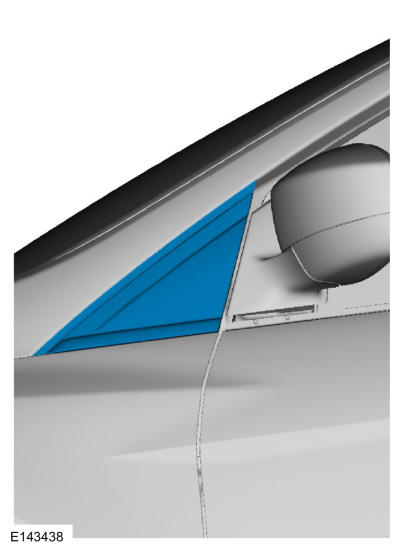

- Install the door frame moulding.

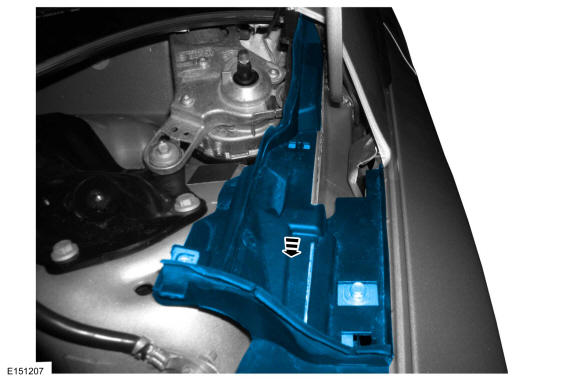

- Install the fender-to-A-pillar baffle.

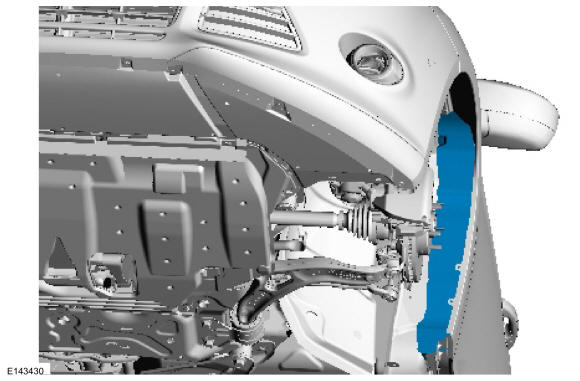

- Install the fender splash shield. Refer to: FENDER SPLASH SHIELD
- Install the rocker panel moulding. Refer to: Rocker Panel Moulding .
- Install the cowl filler panel.
- Install the headlamp assembly. Refer to: Headlamp Assembly .
- Install the cowl panel grille. Refer to: Cowl Panel Grille .
