Cowl Panel Grille: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions .

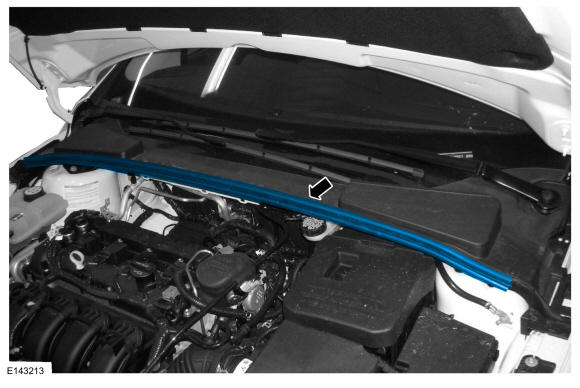

  2. Remove the hood parting seal.
    GFD269889Courtesy of FORD MOTOR COMPANY
  3. Remove the windshield wiper pivot arm. Refer to: WINDSHIELD WIPER PIVOT ARM .

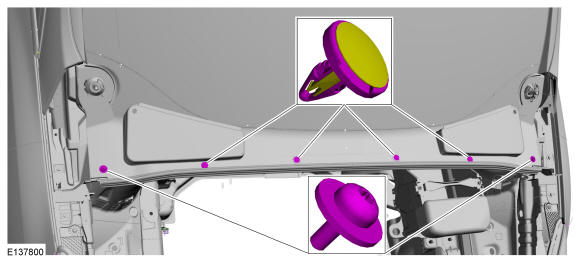

  4. Remove the screws and the retainers.
    GFD269890Courtesy of FORD MOTOR COMPANY

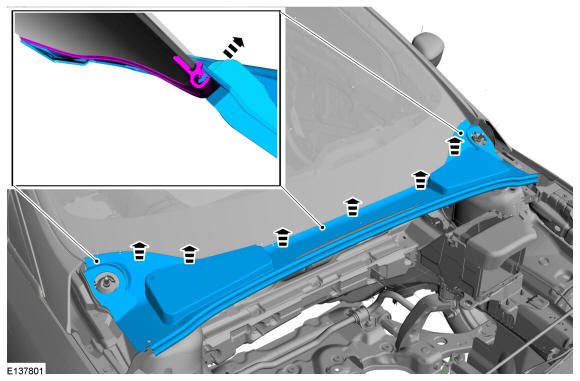

    1. Release the clips and pull out the cowl panel grille.
    2. Lift the cowl panel grille up and remove.
    GFD269891Courtesy of FORD MOTOR COMPANY

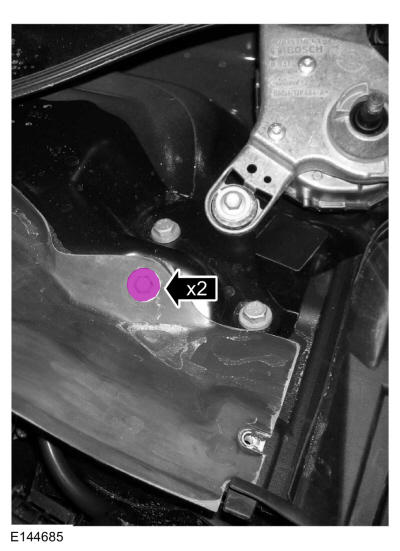

  6. NOTE: LH side shown, RH side similar.

    Remove the bolts.

    Torque

    : 89 lb.in (10 Nm)

GFD269892Courtesy of FORD MOTOR COMPANY
