Active Grille Shutter Actuator: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the active grille shutter. Refer to: Active Grille Shutter - 1.0L EcoBoost (92kW/125PS)  . Refer to: Active Grille Shutter - 2.0L Duratec-HE (125kW/170PS) - MI4  . Refer to: Active Grille Shutter - 2.0L EcoBoost (184kW/250PS) - MI4  .

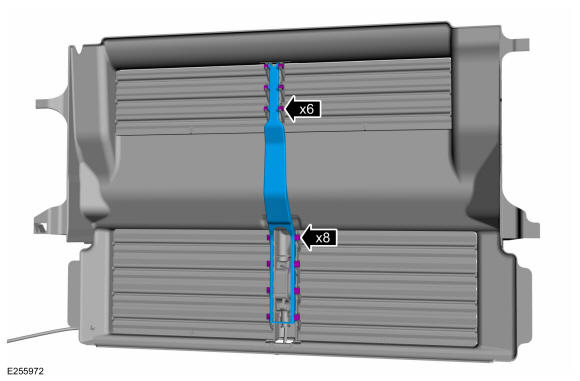

  2. Release the clips and remove the linkage.
    GFD269869Courtesy of FORD MOTOR COMPANY

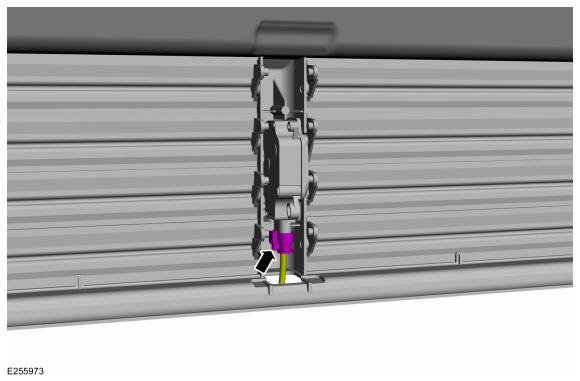

  3. Disconnect the active grille shutter actuator electrical connector.
    GFD269870Courtesy of FORD MOTOR COMPANY

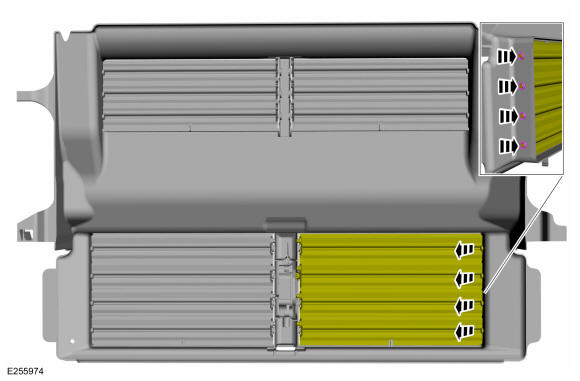

  4. Release the vanes from the active grille shutter.
    GFD269871Courtesy of FORD MOTOR COMPANY

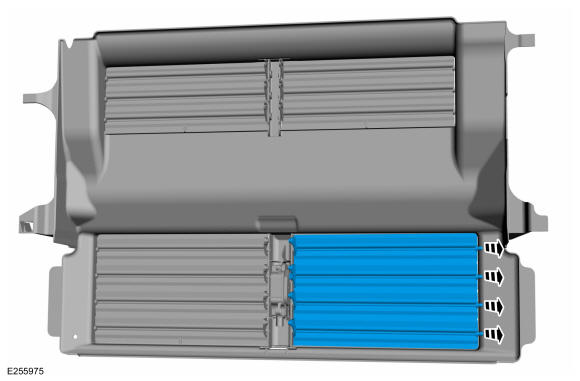

  5. Remove the vanes.
    GFD269872Courtesy of FORD MOTOR COMPANY

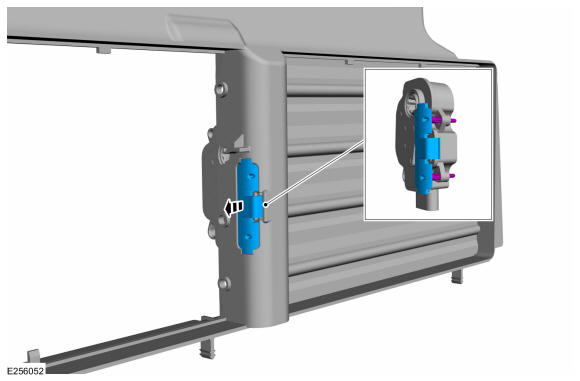

  6. Remove the actuator fixing cover.
    GFD269873Courtesy of FORD MOTOR COMPANY

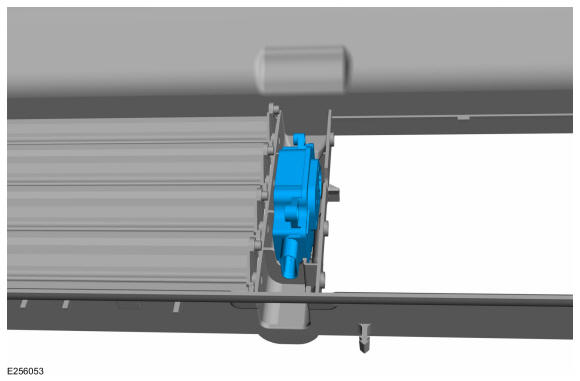

  7. Remove the active grille shutter actuator.
GFD269874Courtesy of FORD MOTOR COMPANY
