Active Grille Shutter - 2.0L EcoBoost (184kW/250PS) - MI4: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the front bumper cover. Refer to: Front Bumper Cover .
Remove the CAC. Refer to: Charge Air Cooler (CAC) .
- Remove the retaining clips and the upper air deflector.
- Remove the screws, detach the active grille shutter retaining tabs from the lower air deflector and remove.
Courtesy of FORD MOTOR COMPANY
Remove the radiator grille opening panel reinforcement bolts.
Torque

:1: 17 lb.ft (23 Nm) 2: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY
- Support the hood with suitable tool.
- Position the hood rod down.
Courtesy of FORD MOTOR COMPANY
1. Remove the cap.
2. Remove the filler neck from the windshield washer reservoir.
Courtesy of FORD MOTOR COMPANY
Pull the radiator grille opening panel reinforcement forward and detach it from the windshield washer reservoir.

Courtesy of FORD MOTOR COMPANY
Lift the radiator grille opening panel reinforcement up releasing it from radiator then position aside it.

Courtesy of FORD MOTOR COMPANY

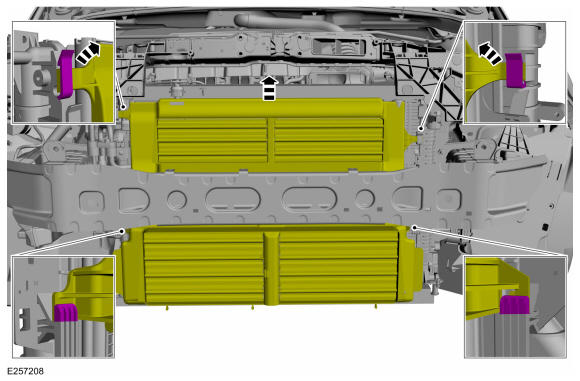

- Release the locking tabs.
- Raise the active grille shutter to separate from the radiator.
Courtesy of FORD MOTOR COMPANY

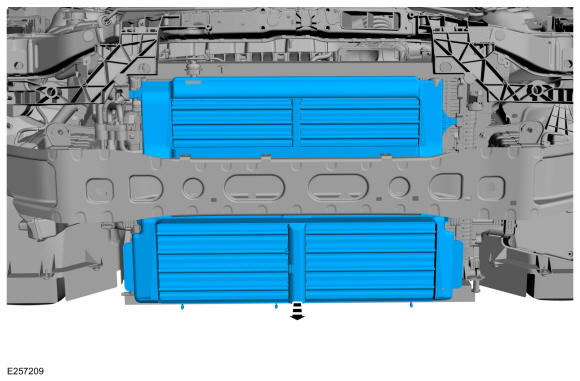

Remove the active grille shutter.
