Trough Assembly: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions .

  2. Remove the roof opening panel glass. Refer to: Roof Opening Panel Glass  .

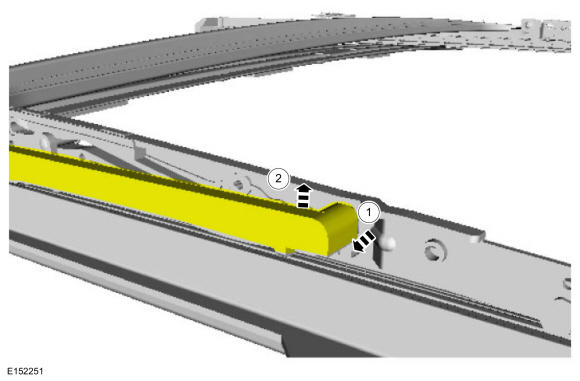

  3. On both sides.

    1. Pull out the trough arm to disconnect from the trough assembly.
    2. Lift the trough arm out of the trough assembly.

    GFD270450Courtesy of FORD MOTOR COMPANY

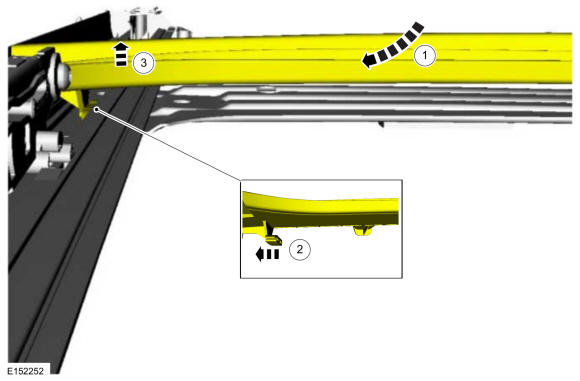

  4. On both sides.

    1. Pull the trough outward.
    2. Release the retaining tab.
    3. Lift the trough out of the guides.

    GFD270451Courtesy of FORD MOTOR COMPANY

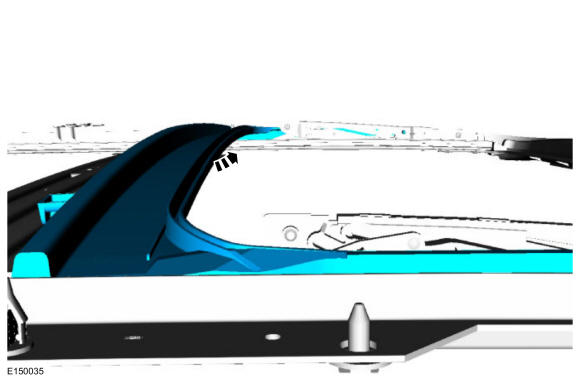

  5. Remove the trough assembly.
GFD270452Courtesy of FORD MOTOR COMPANY
