Roof Opening Panel Shield: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions .

  2. Remove the roof opening panel glass. Refer to: Roof Opening Panel Glass  .
  3. Remove the trough assembly. Refer to: Trough Assembly  .
  4. NOTE: The sub steps should be performed together as a single step.

    Disengage the LH front corner of the roof opening panel shield from the guide track.

    1. Pull up on the center of the roof opening panel shield for clearance.
    2. Pull the LH front roof opening panel shield guide out and up from the guide rail to disengage the roof opening panel shield from the track.

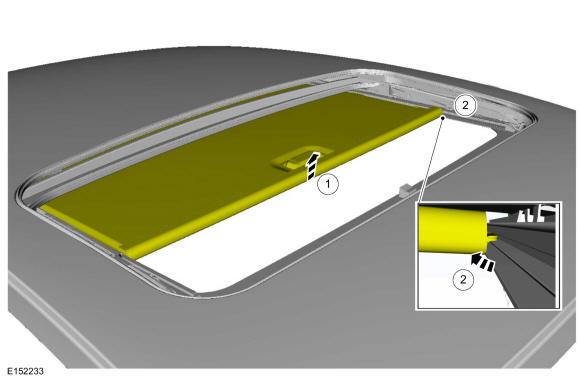

    GFD270448Courtesy of FORD MOTOR COMPANY
  5. NOTE: The sub steps should be performed as a single step.

    Remove the roof opening panel shield.

    1. Pull up at the LH side of the roof opening panel shield.
    2. Carefully rotate the roof opening panel shield in a counterclockwise manner to disengage the remaining guide feet and remove the roof opening panel shield.

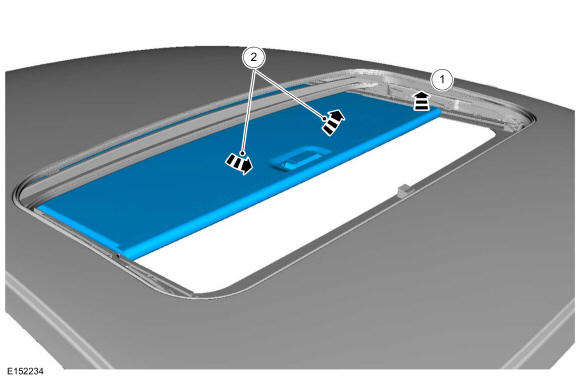

GFD270449Courtesy of FORD MOTOR COMPANY
