Roof Opening Panel Motor: Removal
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions .
-
NOTE: Make sure that the roof opening panel glass is in the CLOSED position.
Remove the overhead console. Refer to: Overhead Console .

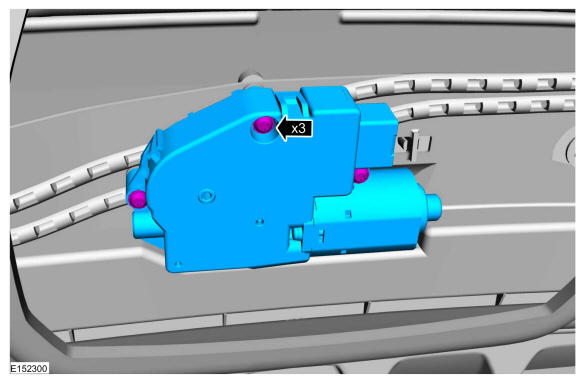

- Remove the roof opening panel motor retainers and remove the roof opening panel motor.
Torque
: 18 lb.in (2 Nm)
