Roof Opening Panel Frame - 5-Door: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions .

  2. Remove the headliner. Refer to: Headliner - 5-Door .
  3. Disconnect the roof opening panel drain hoses from the corners of the roof opening panel frame.
    GFD270440Courtesy of FORD MOTOR COMPANY
  4. With the help of an assistant. Remove the roof opening panel frame.

    1. Remove the roof opening panel frame bolts.
    2. Release the 2 retaining clips.
    3. Release the front retaining clip and remove the roof opening panel frame.

    GFD270441Courtesy of FORD MOTOR COMPANY

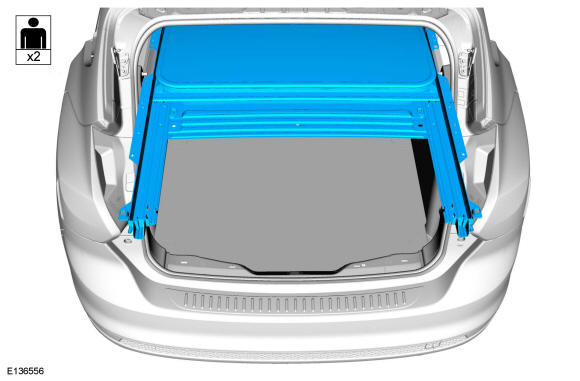

  5. With the help of an assistant. Remove the roof opening panel frame.
GFD270444Courtesy of FORD MOTOR COMPANY
