Roof Opening Panel Control Switch: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions .

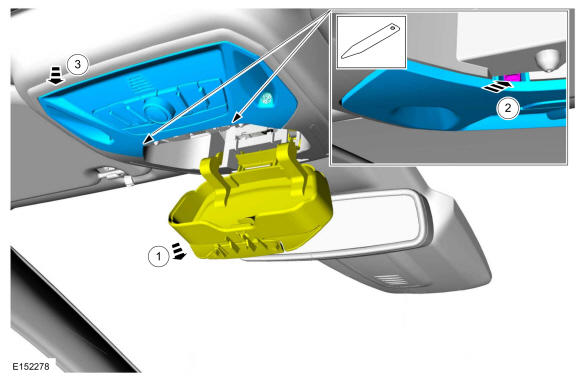

1. Open the sun glass bin. Use the General Equipment: Interior Trim Remover
2. Release the clip.
3. Remove the overhead console.
Courtesy of FORD MOTOR COMPANY
Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

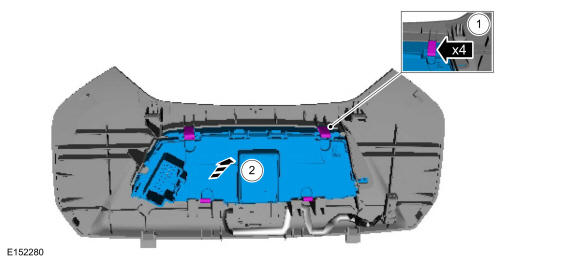

1. Release the retaining tabs.
2. Remove the roof opening panel control switch.

Courtesy of FORD MOTOR COMPANY
