Air Deflector: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions .
NOTE: The roof opening panel glass must be in the full OPEN position.

On both sides.

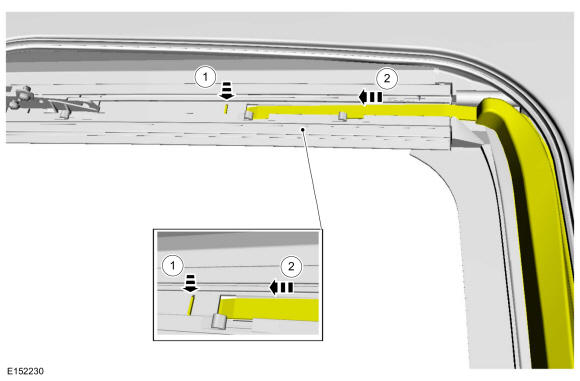

1. Depress the spring steel locating tab downward with a flat-bladed screwdriver. Use the General Equipment: Flat-Bladed Screwdriver
2. Push the air deflector toward the rear of the vehicle.
Courtesy of FORD MOTOR COMPANY
On both sides.

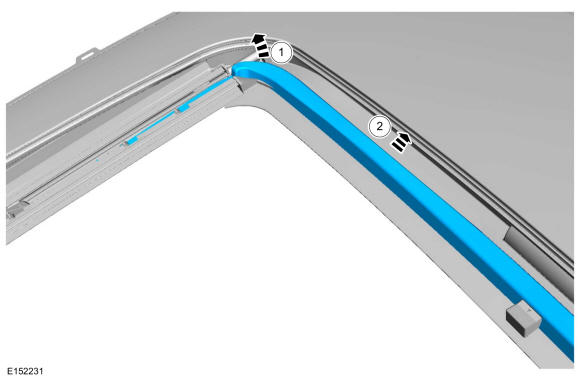

1. Tilt the air deflector assembly upward.
2. Pull forward to remove air deflector assembly.

Courtesy of FORD MOTOR COMPANY
