Rear Window Glass - 5-Door: Installation

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

1. NOTE: Avoid scratching the pinch weld. Repair all minor scratches or exposed metal on the pinch weld following manufacturer's instructions. Use the same brand pinch weld primer, glass primer and urethane adhesive.

  NOTE: Minimum 1 mm (0.04 in) bead thickness.

  NOTE: Touching the adhesive surface will impair rebonding.

  NOTE: Make sure that the mating faces are clean and free of foreign material.

  Using an utility knife, trim the urethane adhesive leaving a 1-2 mm (0.04-0.08 in) base of original equipment urethane adhesive on the pinchweld. Use the General Equipment: Knife
2. NOTE: Prepare the liftgate window glass, liftgate window glass flange and trimmed polyurethane (PU) adhesive in accordance with the instructions supplied with the glass adhesive kit.

  Clean the specified component with the specified material.

  Material

  : Motorcraft® Ultra-Clear Spray Glass Cleaner / ZC-23 (ESR-M14P5-A)
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that new components are installed.

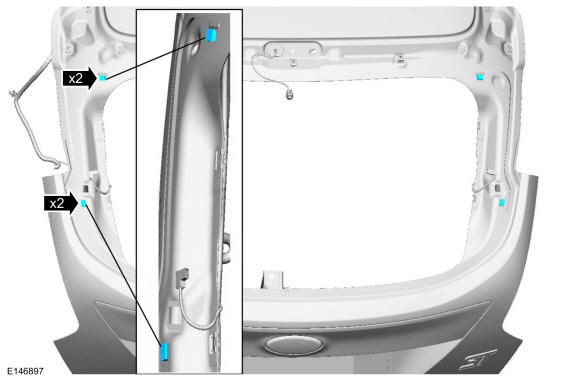

Install the new rear setting blocks.

Courtesy of FORD MOTOR COMPANY
NOTE: Be sure to use the same brand and cure-rate products for the urethane adhesive and glass primer. Do not mix different brands of urethane adhesive and glass primer. For additional information, refer to the Material Chart in this procedure.

NOTE: If installing a new rear window glass, apply glass primer according to manufacturer's instructions. Allow at least 6 minutes to dry.

NOTE: If installing the original rear window glass, remove the excess urethane adhesive.

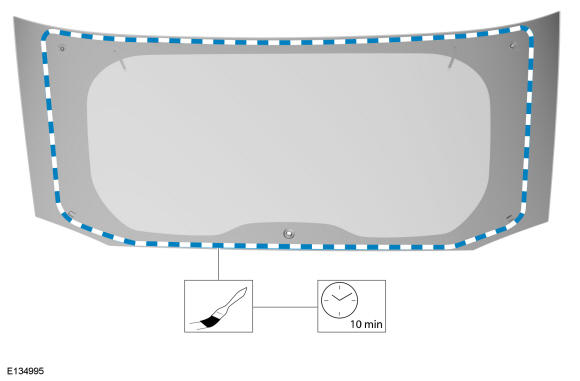

- Apply the specified chemical with a brush.
  Material

  : Sika Urethane Metal and Glass Primer / Sika 206 G+P
- Wait for the indicated amount of time.
Courtesy of FORD MOTOR COMPANY

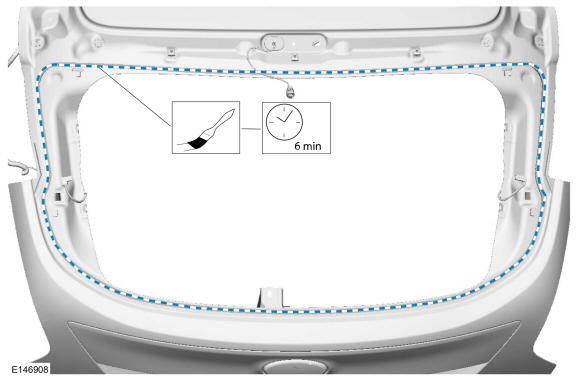

- Apply the specified chemical with a brush.
  Material

  : Dow Urethane One Step Glass Primer / Betaprime™ 5500/5500A/5500SA
- Wait for the indicated amount of time.
Courtesy of FORD MOTOR COMPANY

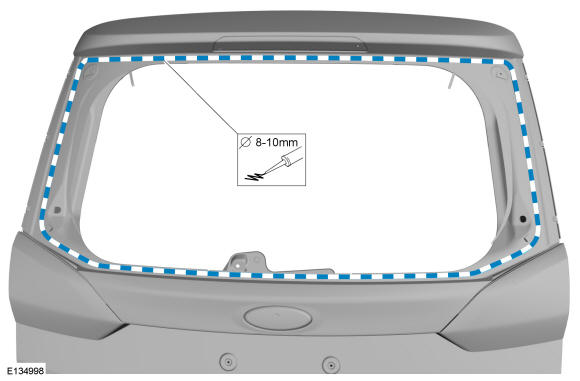

Apply a continuous bead of the specified diameter from the specified cartridge.
Material

: Sika Tack ASAP Urethane Adhesive

Courtesy of FORD MOTOR COMPANY
NOTE: During the curing time of the polyurethane (PU) adhesive, the door windows must be left open.

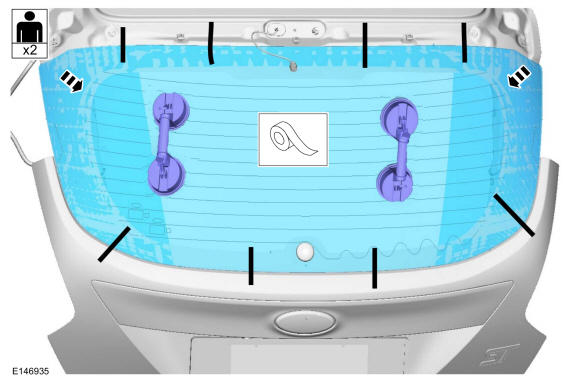

- This procedure step requires the specified number of technicians.
- Press firmly and evenly into position.
- Using tape, secure the windshield glass in the correct position until the adhesive has cured. Use the General Equipment: Adhesive Tape
Courtesy of FORD MOTOR COMPANY
After the urethane adhesive has cured, check the windshield glass seal for air or water leaks through the urethane adhesive bead and add urethane adhesive as necessary.

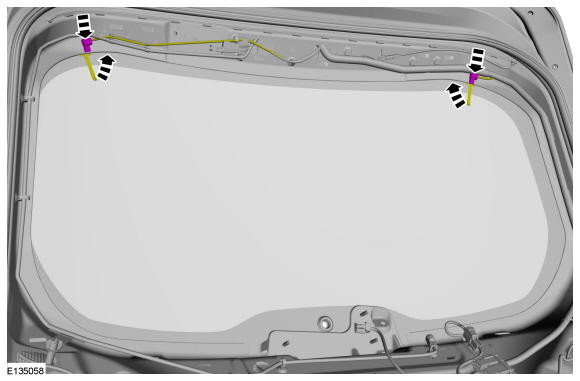

Connect the electrical connectors.

Courtesy of FORD MOTOR COMPANY
Install the rear spoiler. Refer to: Rear Spoiler - 5-Door . Refer to: Rear Spoiler - RS .
Install the rear window wiper motor. Refer to: Rear Window Wiper Motor .
Install the liftgate trim panel. Refer to: Liftgate Trim Panel - 5-Door .
