Rear Window Glass - 4-Door: Installation

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For additional material guidelines, refer to the manufacturer's installation information.

Dry fit the rear window glass to the existing urethane adhesive bead on the body pinch weld. Align the rear window glass in the opening for a uniform fit.
Use a non-permanent pencil to make alignment marks on the rear window glass at the setting blocks (if equipped) and the body to aid in the installation alignment of the rear window glass.
Remove the rear window glass and place on a stable surface.
WARNING: Repair any corrosion found on the pinch weld. The pinch weld is a structural component of the vehicle. Corrosion left unrepaired may reduce the structural integrity of the vehicle. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

NOTE: Avoid scratching the pinch weld. Repair all minor scratches or exposed metal on the pinch weld following manufacturer's instructions. Use the same brand pinch weld primer, glass primer and urethane adhesive.

NOTE: Minimum bead thickness.

NOTE: Touching the adhesive surface will impair rebonding.

NOTE: Make sure that the mating faces are clean and free of foreign material.

Using an utility knife, trim the urethane adhesive leaving a 1-2 mm (0.04-0.08 in) base of original equipment urethane adhesive on the pinchweld. Use the General Equipment: Knife

Courtesy of FORD MOTOR COMPANY
Using a soft brush or vacuum, remove any dirt or foreign material from the pinch weld.
If installing the original rear window glass, remove the excess urethane adhesive.
NOTE: Make sure that new components are installed.

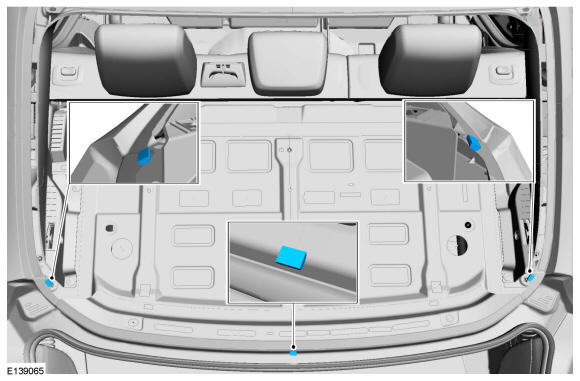

Install new rear setting blocks (if equipped).

Courtesy of FORD MOTOR COMPANY
NOTE: Be sure to use the same brand and cure-rate products for the urethane adhesive and glass primer. Do not mix different brands of urethane adhesive and glass primer. For additional information, refer to the Material Chart in this procedure.

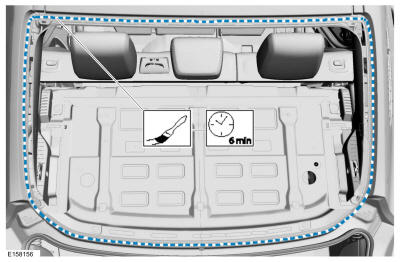

If installing a new rear window glass, apply glass primer according to manufacturer's instructions. Allow at least 6 minutes to dry.

Courtesy of FORD MOTOR COMPANY
Cut the urethane adhesive applicator tip to specification.

Courtesy of FORD MOTOR COMPANY
NOTE: Use either a high-ratio, electric or battery-operated caulk gun that will apply the urethane adhesive with less effort and continuous bead.

Apply urethane adhesive on top of the existing trimmed urethane adhesive bead on the pinch weld, starting and ending at the bottom of the rear window glass near the center, making sure there are no gaps in the bead.

Courtesy of FORD MOTOR COMPANY

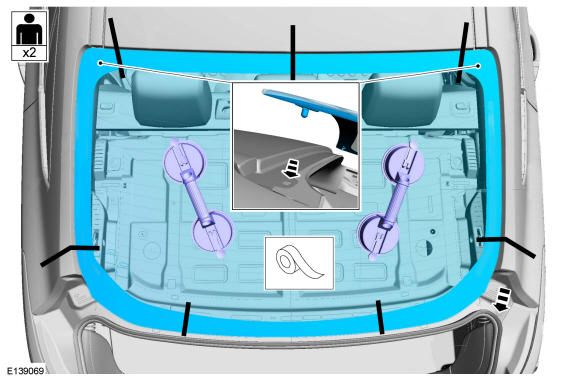

Using a set of suction handles install the rear window glass.
Press firmly and evenly into position.
NOTE: During the curing time of the adhesive, the door windows must be left open.

Using tape, secure the windshield glass in the correct position until the adhesive has cured. Use the General Equipment: Adhesive Tape

Courtesy of FORD MOTOR COMPANY
WARNING: Do not drive vehicle until the urethane adhesive seal has cured. Follow urethane adhesive manufacturer's curing directions. Inadequate or incorrect curing of the urethane adhesive seal will adversely affect glass retention. Failure to follow these instructions may result in serious injury to vehicle occupant(s).

After the urethane adhesive has cured, check the rear window glass seal for air or water leaks through the urethane adhesive bead and add urethane adhesive as necessary.

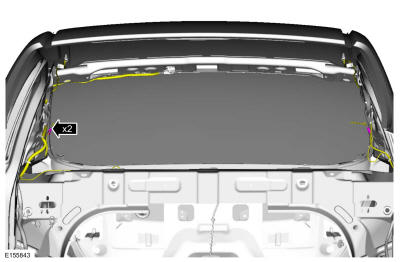

Connect the rear window defrost electrical connectors.

Courtesy of FORD MOTOR COMPANY
Install the D-pillar trim panels. Refer to: D-Pillar Trim Panel - 4-Door .
