Rear Quarter Window Glass - 4-Door: Removal
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
-
WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions .
- Remove the D-pillar trim panel.
- Remove the upper C-pillar trim panel
-
NOTE: Some resistance may be encountered when cutting though the glass locating spacers.

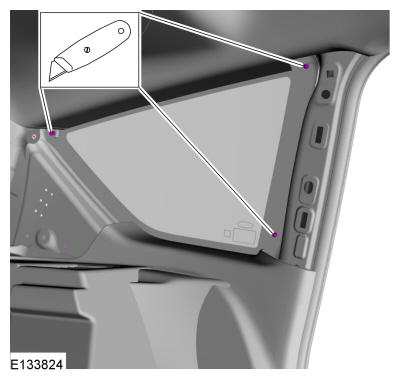

Using a utility knife, cut the glass locating spacers. Use the General Equipment: Knife
-
WARNING: Always wear eye protection when servicing a vehicle. Failure to follow this instruction may result in serious personal injury.WARNING: Wear protective gloves when handling components or parts that have pointed or sharp edges. Failure to follow this instruction may result in serious personal injury.NOTE: Lubricate the existing urethane adhesive with water to aid the Deluxe Air Knife while cutting.

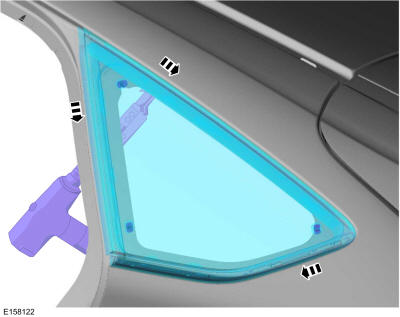

Using the special tool and working from inside the vehicle, cut the urethane adhesive from the rear quarter glass starting at the top center and working toward the bottom corners then across the bottom and remove the rear quarter window. Use Special Service Tool: 300-AST1770E Deluxe Air Knife.
