Rear Door Window Regulator: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions .

  2. Remove the rear door trim panel. Refer to: REAR DOOR TRIM PANEL

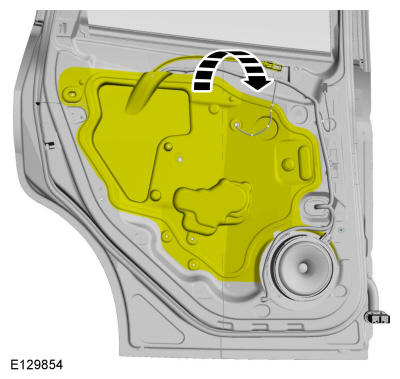

  3. Position aside the rear door watershield.
    GFD270211Courtesy of FORD MOTOR COMPANY

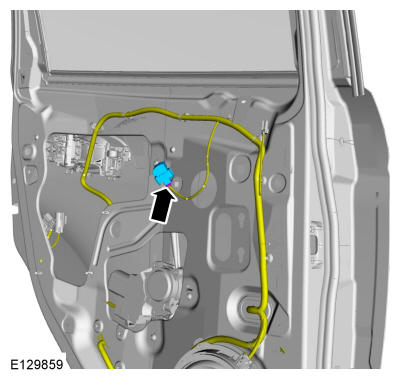

  4. Install the rear window control switch.
    GFD270212Courtesy of FORD MOTOR COMPANY

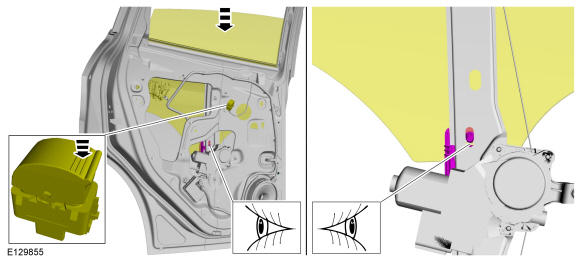

  5. Position the rear window control switch and lower the rear window glass to full down position.
    GFD270213Courtesy of FORD MOTOR COMPANY

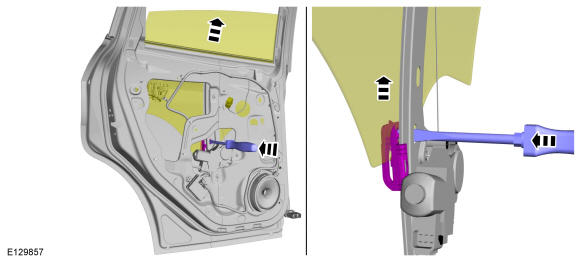

  6. Release the clip from the rear door window glass and raise the rear door window glass to the full up position. Use the General Equipment: Flat Headed Screw Driver
    GFD270214Courtesy of FORD MOTOR COMPANY
  7. Tape the rear door window glass in place. Use the General Equipment: Adhesive Tape
    GFD270215Courtesy of FORD MOTOR COMPANY

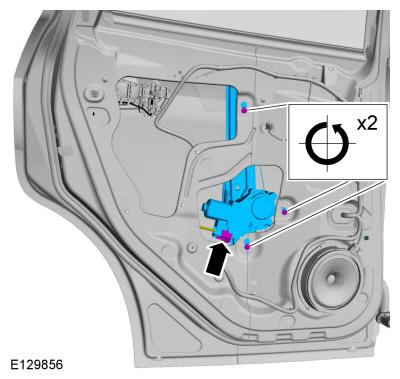

  8. Remove the rear door window regulator.

    • Remove the retainers and the rear door window regulator.

GFD270216Courtesy of FORD MOTOR COMPANY
