Rear Door Window Glass: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door trim panel. Refer to: REAR DOOR TRIM PANEL

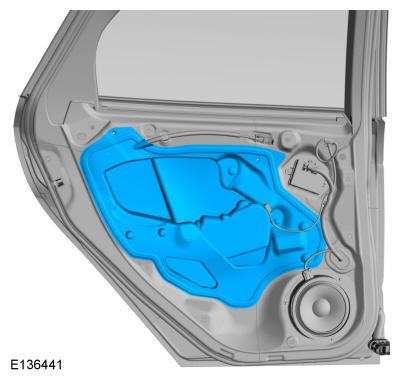

  2. Remove the rear door watershield.
    GFD270201Courtesy of FORD MOTOR COMPANY

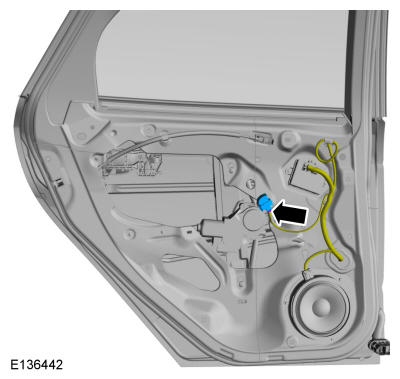

  3. Install the rear door window control switch.
    GFD270202Courtesy of FORD MOTOR COMPANY
  4. Lower the rear door window glass to full down position.
    GFD270203Courtesy of FORD MOTOR COMPANY
  5. Remove the outer belt molding.
    GFD270204Courtesy of FORD MOTOR COMPANY

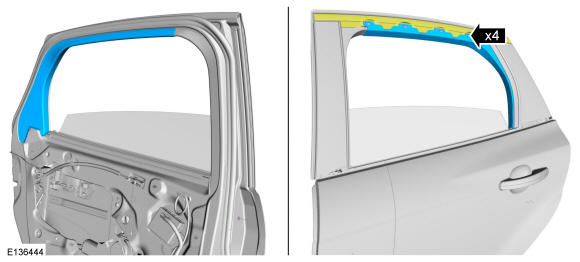

  6. Remove the rear door inner upper trim panel.
    GFD270205Courtesy of FORD MOTOR COMPANY
  7. Position aside the rear door window top run.
    GFD270206Courtesy of FORD MOTOR COMPANY

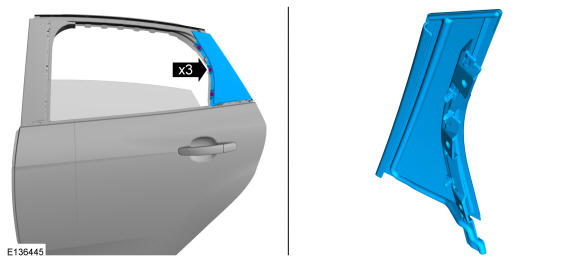

  8. Remove the pushpins and remove the aft rear door upper moulding.
    GFD270207Courtesy of FORD MOTOR COMPANY

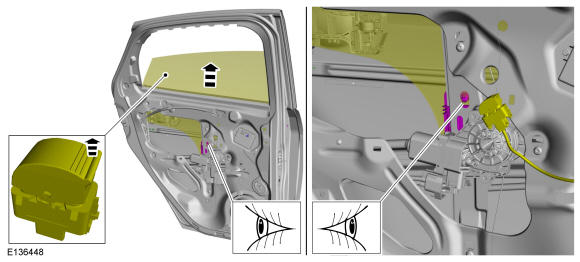

  9. Raise the rear door window glass to the half up position.
    GFD270208Courtesy of FORD MOTOR COMPANY

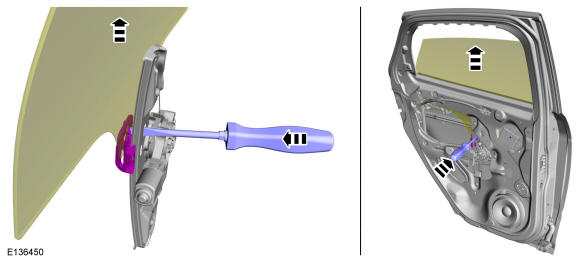

  10. Release the rear door window glass from the retaining clip.

    • Release the rear door window retaining clip.

    • Release the rear door window glass from the rear door window retaining clip.

    GFD270209Courtesy of FORD MOTOR COMPANY
  11. Remove the rear door window glass.
GFD270210Courtesy of FORD MOTOR COMPANY
