Rear Door Window Control Switch: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions .

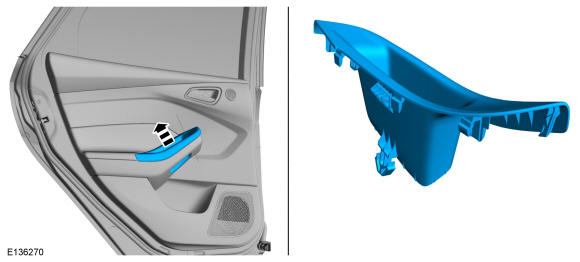

  2. Remove the rear door window control switch bezel assembly.
    GFD270015Courtesy of FORD MOTOR COMPANY
  3. Remove the rear door window control switch.

    • Disconnect the rear door window control switch electrical connector.

GFD270200Courtesy of FORD MOTOR COMPANY
