Front Door Window Regulator: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. Refer to: FRONT DOOR TRIM PANEL

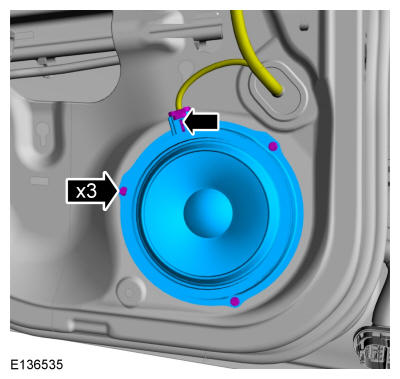

  2. Remove the front door speaker.

    • Disconnect the front door speaker electrical connector and position aside the wiring harness.

    • Remove the retainers and remove the front door speaker.

    GFD269713Courtesy of FORD MOTOR COMPANY

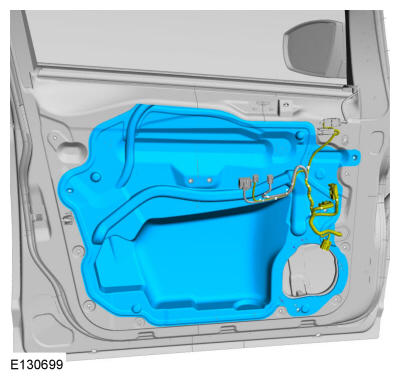

  3. Position aside the wiring harness and remove the front door watershield.
    GFD270193Courtesy of FORD MOTOR COMPANY

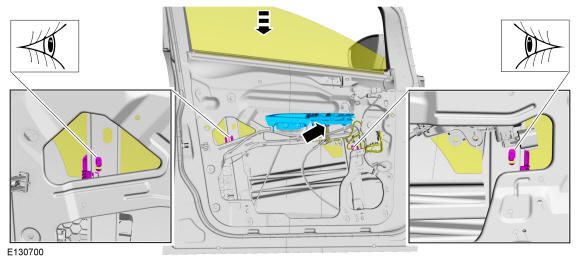

  4. Install the front door window control switch and lower the glass to 2/3 down position.
    GFD270194Courtesy of FORD MOTOR COMPANY

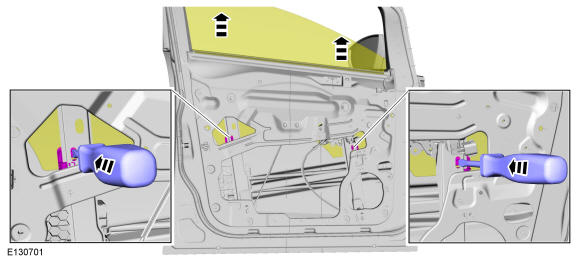

  5. Release the retaining clips from front door window glass. Use the General Equipment: Flat Headed Screw Driver
    GFD270195Courtesy of FORD MOTOR COMPANY

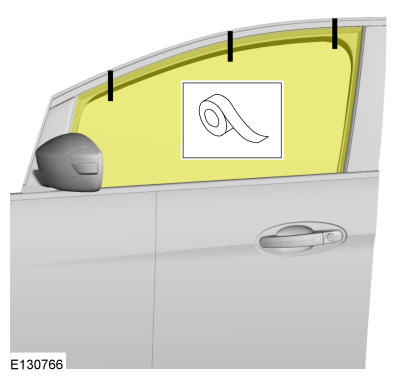

  6. Tape the front door window glass in place. Use the General Equipment: Adhesive Tape
    GFD270197Courtesy of FORD MOTOR COMPANY

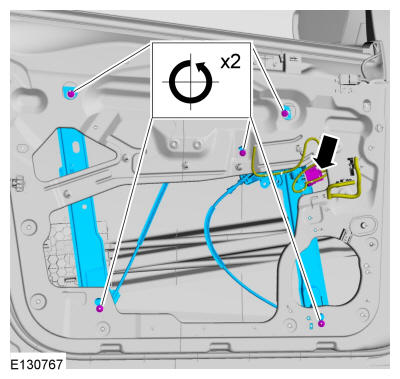

  7. Remove the front door window regulator.

    • Disconnect the electrical connector and the position aside the wiring harness.

    • Remove the nuts and the bolt.

GFD270198Courtesy of FORD MOTOR COMPANY
