Front Door Window Control Switch: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions .

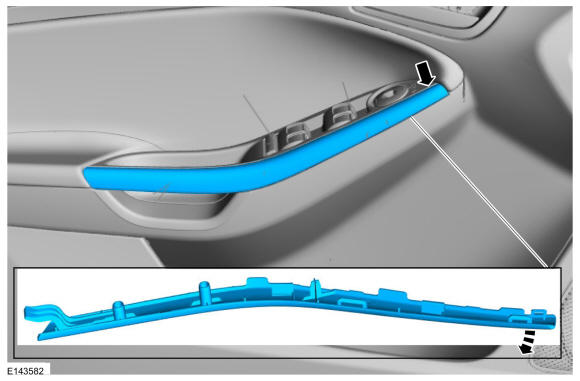

  2. Remove the front door window control switch trim cover.
    GFD270190Courtesy of FORD MOTOR COMPANY

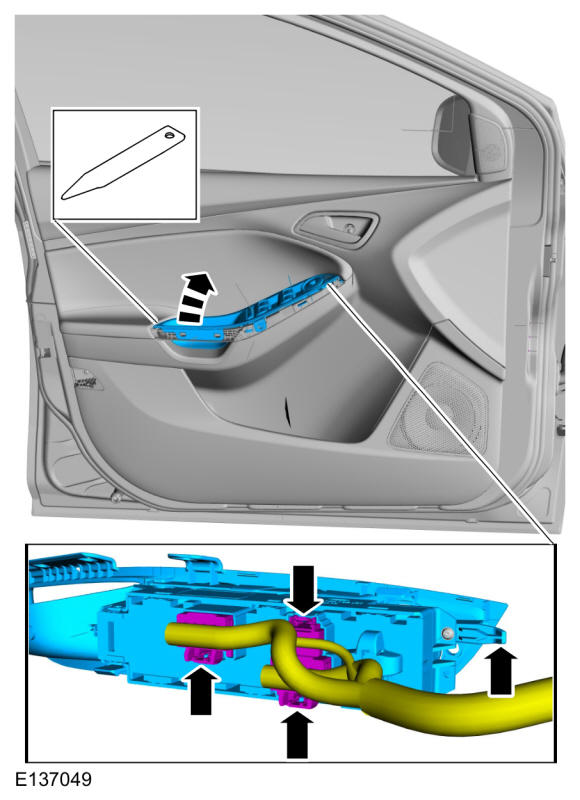

  3. Remove the front door window control switch.

    • Remove the front door window control switch and the bezel assembly. Use the General Equipment: Interior Trim Remover

    • Disconnect the front door window control switch electrical connector.

    GFD270191Courtesy of FORD MOTOR COMPANY

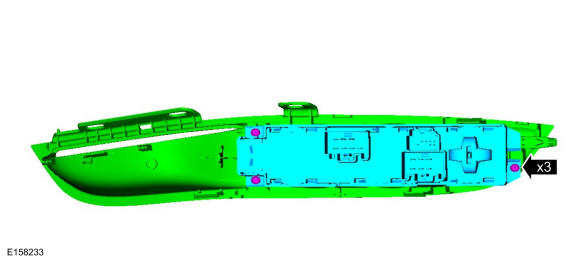

  4. Remove the front door window control switch from the bezel.
GFD270192Courtesy of FORD MOTOR COMPANY
