Front Door Glass Top Run: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the exterior mirror. Refer to: Exterior Mirror Vehicles With: One-Touch Open Driver Window . Refer to: Exterior Mirror Vehicles With: One-Touch Open and Close Front Windows .
  2. Remove the front door window glass. Refer to: Front Door Window Glass  .
  3. Remove the front door upper moulding. Refer to: Front Door Upper Moulding .

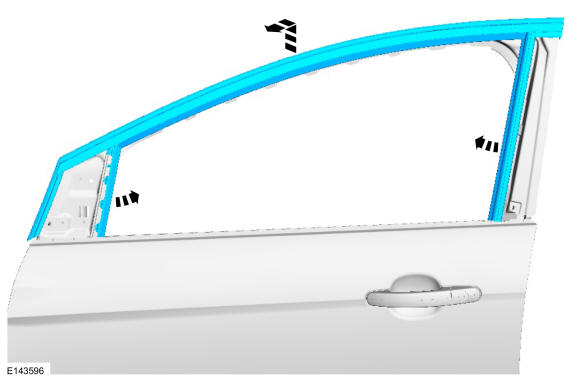

  4. Remove the front door glass top run.
GFD270189Courtesy of FORD MOTOR COMPANY
