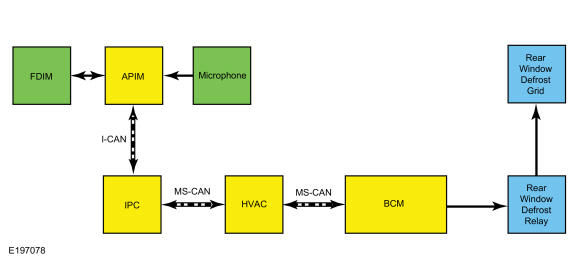

System Diagram - Rear Window Defrost (DATC)

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
GFD270180Courtesy of FORD MOTOR COMPANY
Item Description
1 FDIM
2 APIM
3 Microphone
4 I-CAN
5 IPC
6 MS-CAN
7 HVAC
8 MS-CAN
9 Rear Window Defrost Grid
10 Rear Window Defrost Relay
11 BCM
