Component Tests
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

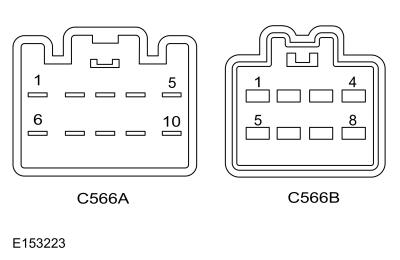

For vehicles not equipped with power rear windows, check for component-side continuity of the exterior mirror control switch pins while actuating the switch as directed in the chart below.
| Exterior Mirror Selection Switch Position | Exterior Mirror Control Switch Direction | Continuity Between Component-Side Pins |
|---|---|---|
| LH Mirror | Left | C566A-1 and C566B-6 |
| C566B-1 and C566B-7 | ||
| LH Mirror | Right | C566A-1 and C566B-7 |
| C566B-1 and C566B-6 | ||
| LH Mirror | Up | C566A-1 and C566B-7 |
| C566B-1 and C566B-8 | ||
| LH Mirror | Down | C566A-1 and C566B-8 |
| C566B-1 and C566B-7 | ||
| RH Mirror | Left | C566A-1 and C566B-2 |
| C566B-1 and C566B-3 | ||
| RH Mirror | Right | C566A-1 and C566B-3 |
| C566B-1 and C566B-2 | ||
| RH Mirror | Up | C566A-1 and C566B-3 |
| C566B-1 and C566B-4 | ||
| RH Mirror | Down | C566A-1 and C566B-4 |
| C566B-1 and C566B-3 |
For vehicles equipped with power rear windows, check for component-side continuity of the exterior mirror control switch pins while actuating the switch as directed in the chart below.
| Exterior Mirror Selection Switch Position | Exterior Mirror Control Switch Direction | Continuity Between Component-Side Pins |
|---|---|---|
| LH Mirror | Left | C504C-8 and C504C-3 |
| C504A-2 and C504C-5 | ||
| LH Mirror | Right | C504C-8 and C504C-5 |
| C504A-2 and C504C-3 | ||
| LH Mirror | Up | C504C-8 and C504C-12 |
| C504A-2 and C504C-3 | ||
| LH Mirror | Down | C504C-8 and C504C-3 |
| C504A-2 and C504C-12 | ||
| RH Mirror | Left | C504C-8 and C504C-4 |
| C504A-2 and C504C-6 | ||
| RH Mirror | Right | C504C-8 and C504C-6 |
| C504A-2 and C504C-4 | ||
| RH Mirror | Up | C504C-8 and C504C-11 |
| C504A-2 and C504C-4 | ||
| RH Mirror | Down | C504C-8 and C504C-4 |
| C504A-2 and C504C-11 |
