Rear Door: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions .

NOTE: Removal steps in this procedure may contain installation details.

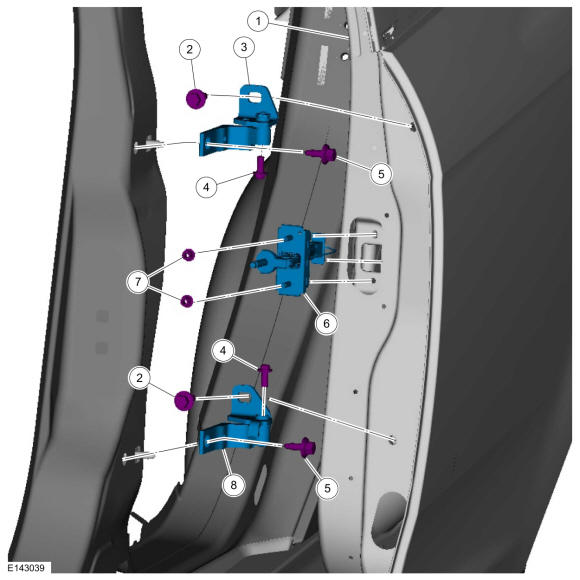

NOTE: LH side shown, RH side similar.
- Door assembly 5824630 RH /5824631 LH
- Door hinge-to-door bolt 00813
  Torque

  : 35 lb.ft (47 Nm)
- Upper door hinge 5422800 RH /5422801 LH
- Door hinge pivot bolt W715222
  Torque

  : 22 lb.ft (30 Nm)
- Door hinge-to-body bolt (2 required) W715683
  Torque

  : 26 lb.ft (35 Nm)
- Door check assembly 5827204
- Door check assembly nuts (2 required) W520201
  Torque

  : 97 lb.in (11 Nm)
- Lower door hinge 5826802 RH /5826803 LH
Courtesy of FORD MOTOR COMPANY

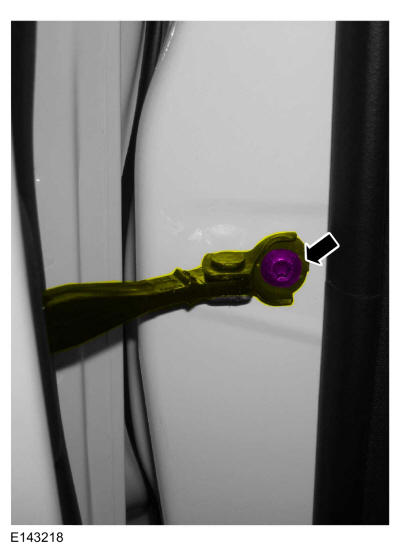

Remove the door check bolt from the B-pillar and position aside the door check.
Torque

: 16 lb.ft (22 Nm)

Courtesy of FORD MOTOR COMPANY
Support the door.

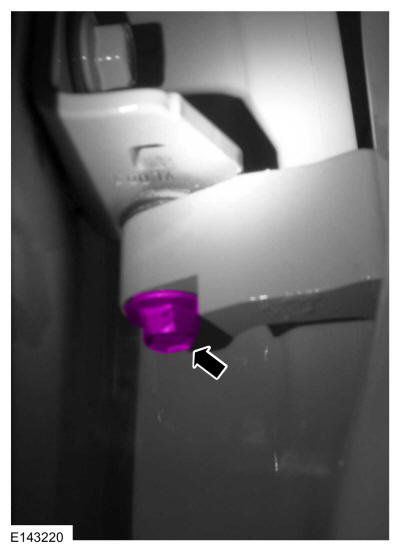

Remove the lower door hinge pivot bolt.
Torque

: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

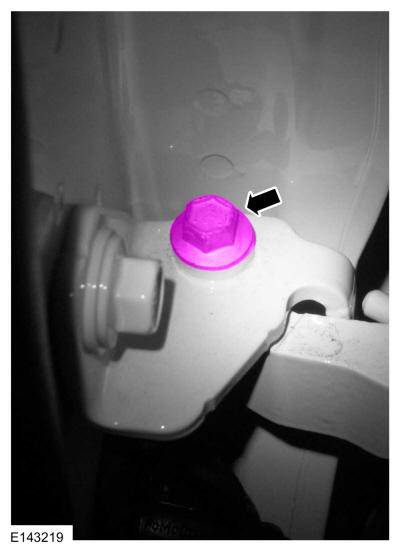

Remove the upper door hinge pivot bolt.
Torque

: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
Position the door slightly away from the vehicle.

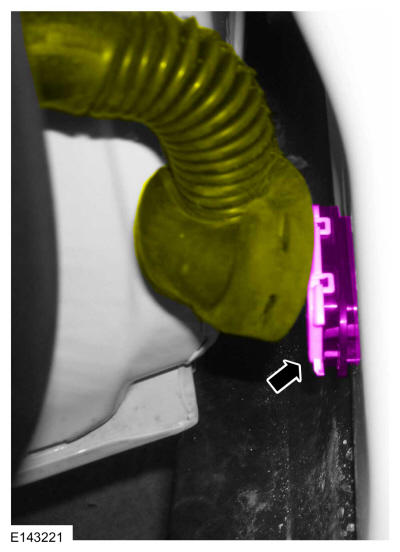

Position the wiring harness boot aside and disconnect the door wiring harness electrical connector.

Courtesy of FORD MOTOR COMPANY
Remove the door.
