Removal And Installation: Liftgate: Removal
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
-
WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions .
NOTE: Removal steps in this procedure may contain installation details. -

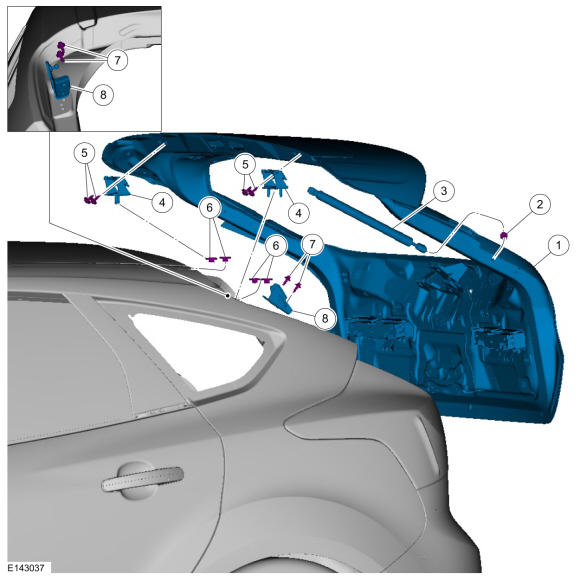

- Liftgate assembly 5840110
- Liftgate support-to-liftgate pivot bolt (2 required) 5845590
Torque
: 16 lb.ft (22 Nm)
- Liftgate strut (2 required) 58406A10
- Liftgate hinge 5842900 RH /5842901 LH
- Hinge-to-liftgate bolt (4 required) W715314
Torque
: 97 lb.in (11 Nm)
- Hinge-to-body nut (2 required) W711213
Torque
: 22 lb.ft (30 Nm)
- Liftgate support-to-body bracket bolt (4 required) W715824
Torque
: 16 lb.ft (22 Nm)
- Liftgate support-to-body bracket 58442A38-A RH /58442A38-B LH
- Remove the D-pillar trim panels. Refer to: D-PILLAR TRIM PANEL - 5-DOOR

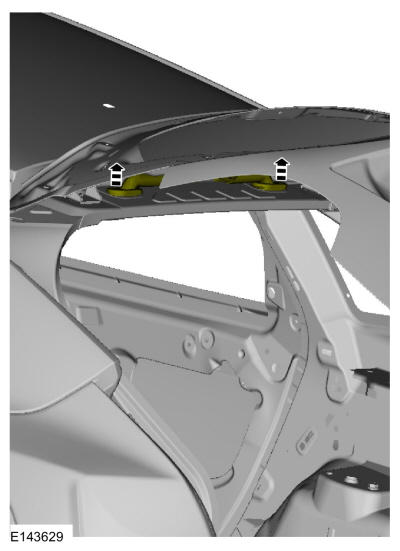

- Position the upper portion of the liftgate opening weatherstrip aside.

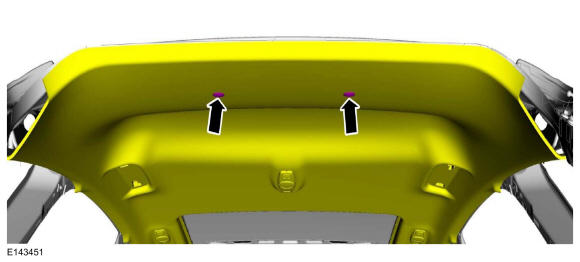

- Position the headliner aside.

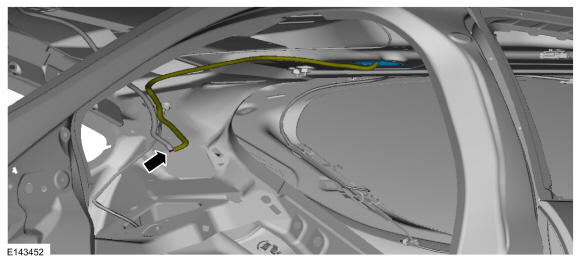

- Disconnect and position the rear washer hose aside.

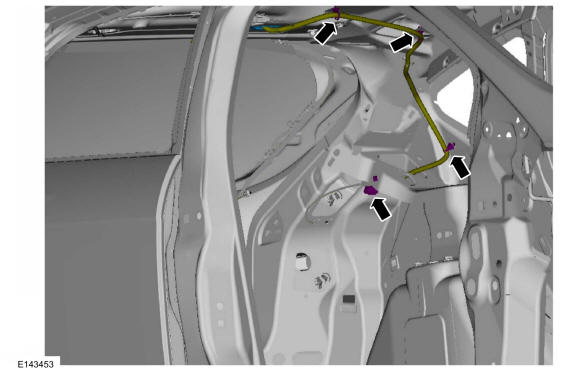

- Disconnect and position the liftgate wiring harness aside.
- Remove the wiring and harness boots at the body and route the lines out of the body.
- Manually support the liftgate.
-
NOTE: Support the liftgate before removing the struts. Failure to follow this direction may result in damage to the components.

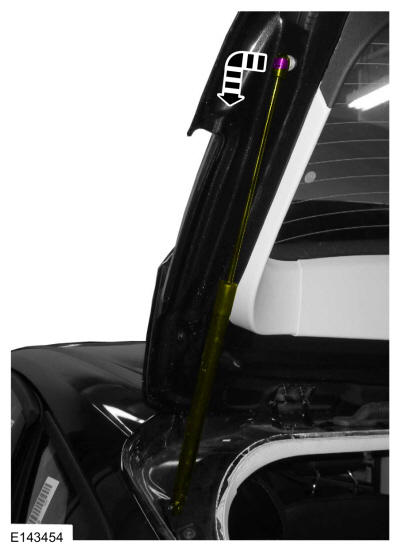

Disconnect both sides of the liftgate struts and position aside.

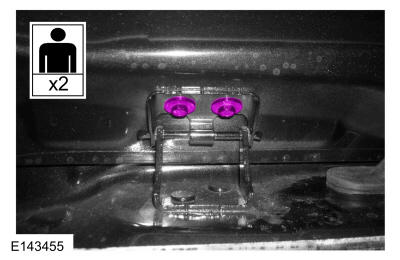

- With the help of an assistant, remove both sides of the liftgate-to-hinge bolts and remove the liftgate.
Torque
: 97 lb.in (11 Nm)
