Fuel Filler Door Spring: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

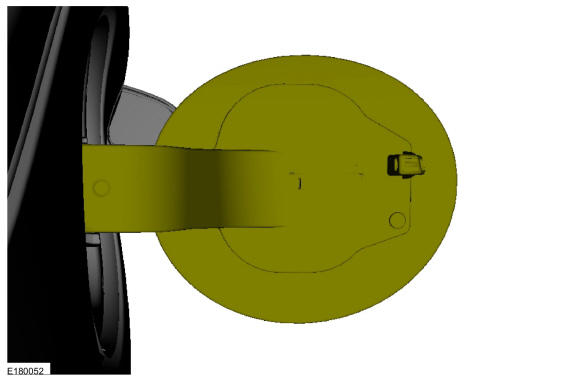

  1. Open the fuel filler door.
    GFD269943Courtesy of FORD MOTOR COMPANY

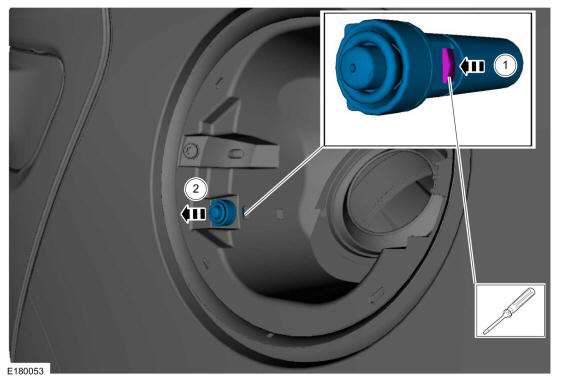

  2. Using a screwdriver, press the tab to release the fuel filler door spring from the fuel filler door assembly.
GFD269944Courtesy of FORD MOTOR COMPANY
