Fuel Filler Door Assembly - 5-Door: Removal
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The fuel filler door assembly is damaged during the removal process and requires a new fuel filler door assembly installed.

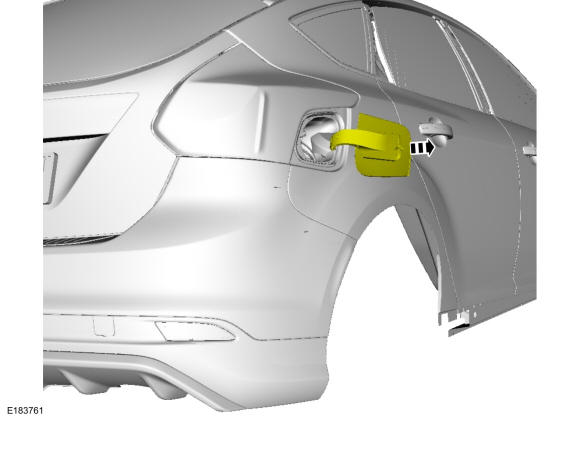

- Open the fuel filler door.
- Refer to: Wheel and Tire .

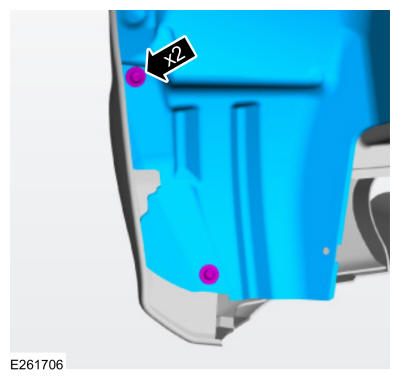

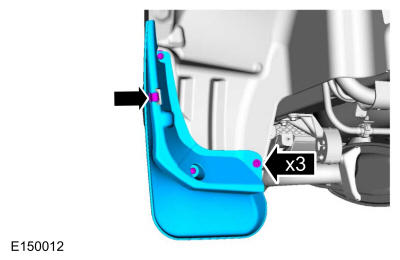

- If equipped, remove the rear deflector.
Torque
: 18 lb.in (2 Nm)

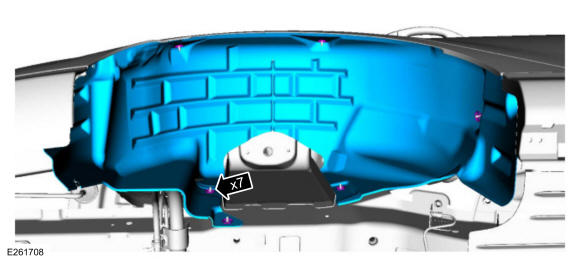

- Unseat the fuel filler door assembly boot from inside the wheel opening.

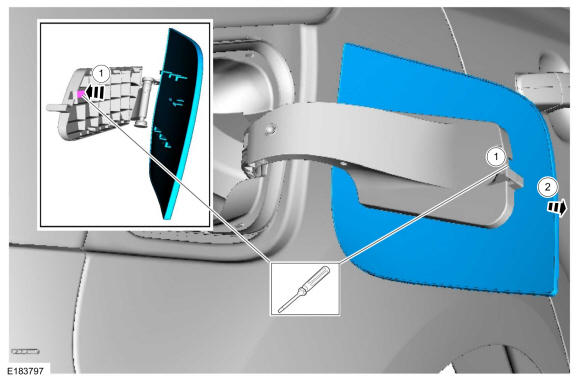

- Using a screwdriver, pry the retaining tab back and slide the fuel door from the fuel filler door hinge. Use the General Equipment: Flat Headed Screw Driver

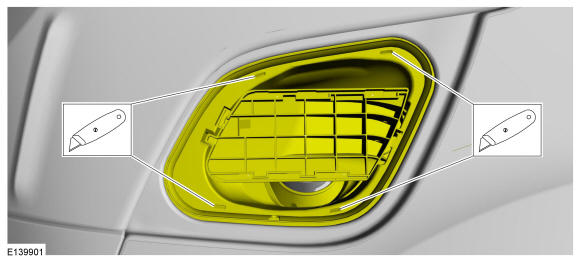

- Using a knife, slice the holes in the indicated area. Use the General Equipment: Knife

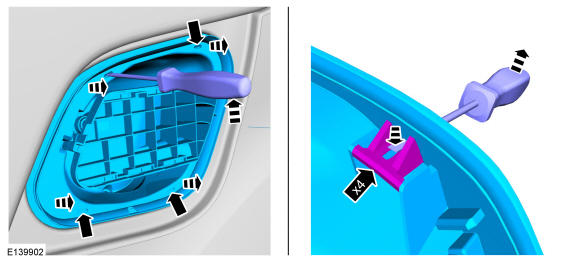

- Insert the screwdriver and release the clips while pulling the housing away from the vehicle. Use the General Equipment: Flat Headed Screw Driver
