Front Door: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
NOTE: LH side shown, RH side similar.

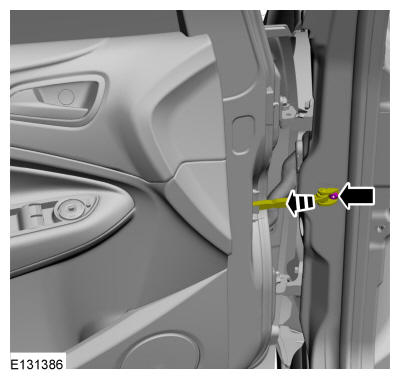

  1. Remove the check arm bolt.

    Torque

    : 22 lb.ft (30 Nm)

    GFD269957Courtesy of FORD MOTOR COMPANY

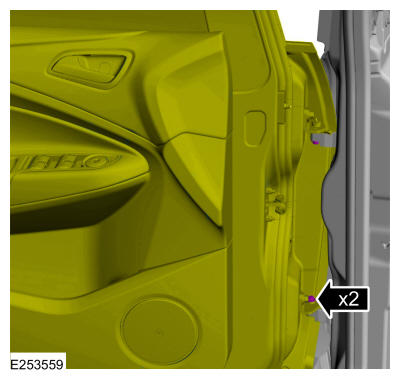

  2. Attach the door lift. Remove the door hinge pivot bolts. Use the General Equipment: Door Lift

    Torque

    : 22 lb.ft (30 Nm)

    GFD269958Courtesy of FORD MOTOR COMPANY

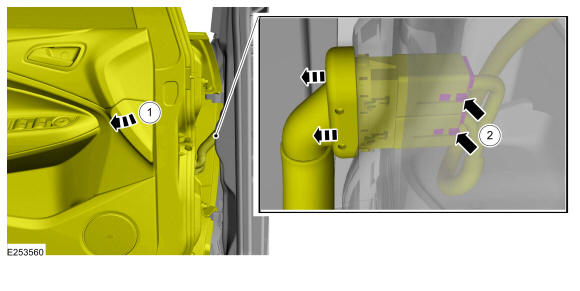

  3. Position aside the door and disconnect the front door electrical connector.
    GFD269959Courtesy of FORD MOTOR COMPANY

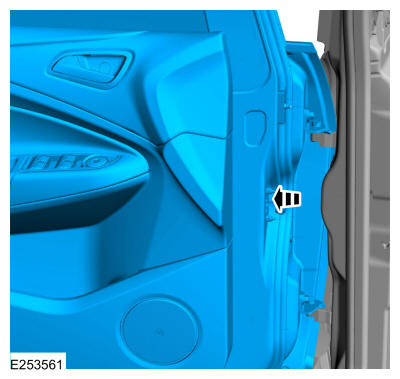

  4. Remove the door.
GFD269960Courtesy of FORD MOTOR COMPANY
