Luggage Compartment Lid Alignment

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Check

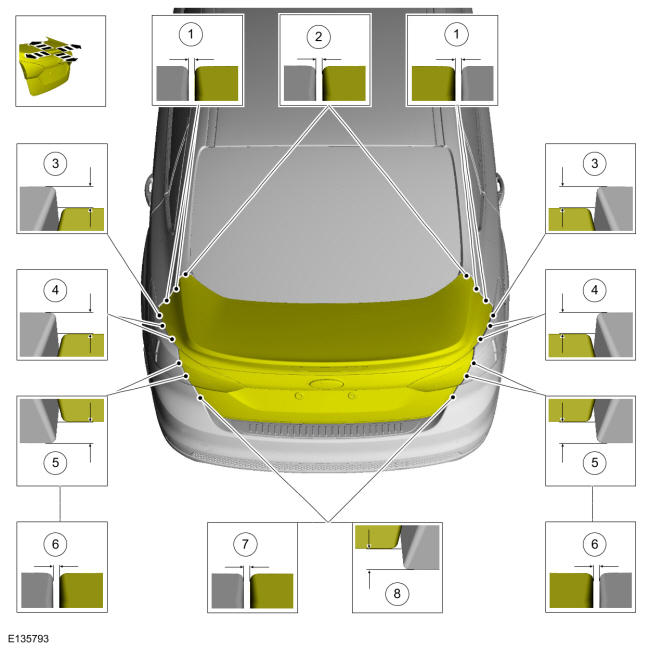

Check the luggage compartment lid-to-body dimensions.
1. 4.5mm±1.5mm
2. 6.0mm±1.5mm
3. 1.3mm±1.4mm
4. 1.5mm±1.4mm
5. 1.5mm±1.5mm
6. 4.0mm±2.1mm
7. 3.5mm±1.5mm
8. 1.5mm±1.4mm

Courtesy of FORD MOTOR COMPANY

Adjustment

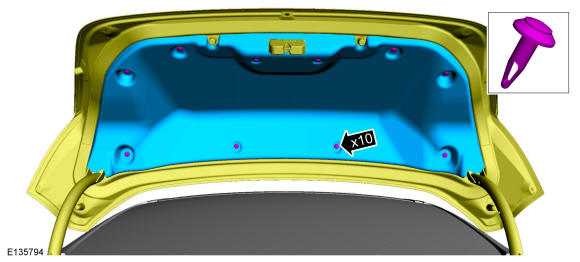

Remove the pin-type retainers and the luggage compartment lid trim panel.

Courtesy of FORD MOTOR COMPANY

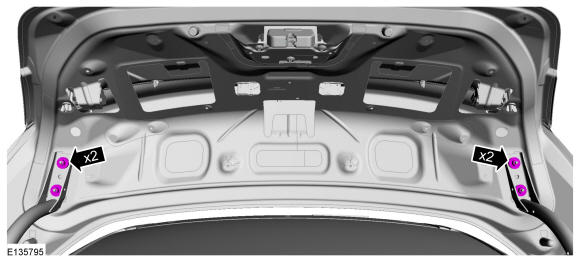

Loosen the nuts enough to permit movement of the luggage compartment lid. Loosen: 2 turn(s)

Courtesy of FORD MOTOR COMPANY

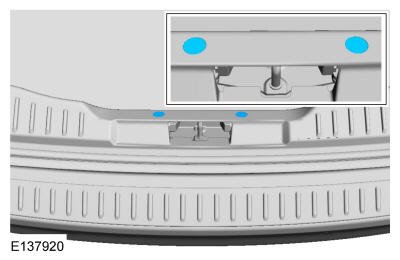

Remove the luggage compartment lid striker bolt covers.

Courtesy of FORD MOTOR COMPANY
Loosen the luggage compartment lid striker bolts. Loosen: 2 turn(s)

Courtesy of FORD MOTOR COMPANY

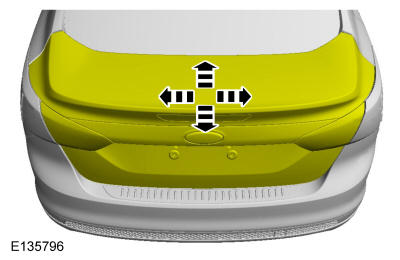

Adjust the luggage compartment lid to specification.

Courtesy of FORD MOTOR COMPANY
Adjust the luggage compartment lid striker.

Courtesy of FORD MOTOR COMPANY
Tighten the nuts.
Torque

: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
Install the luggage compartment lid trim panel and the pin-type retainers.

Courtesy of FORD MOTOR COMPANY
Tighten the luggage compartment lid striker bolts.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Install the luggage compartment lid striker bolt covers.

Courtesy of FORD MOTOR COMPANY

Check

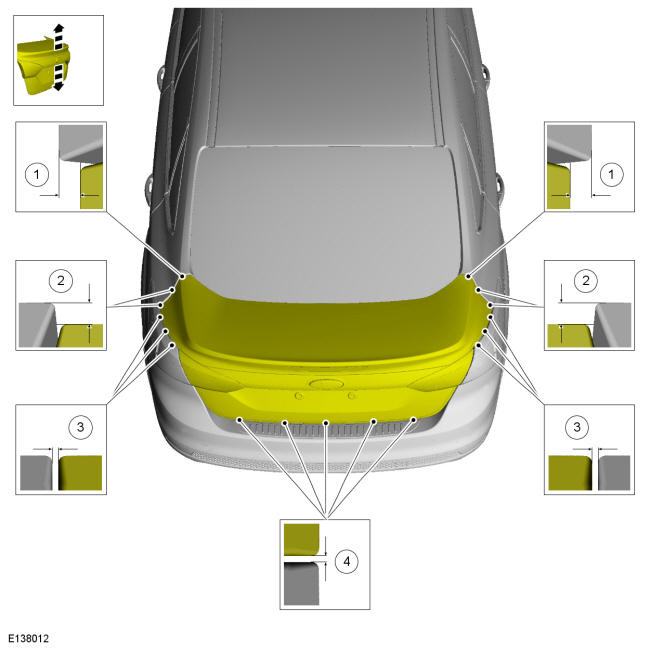

Check the body-to-luggage compartment lid dimensions.
1. 0.8mm±1.4mm
2. 1.5mm±1.4mm
3. 4.0mm±2.0mm
4. 6.0mm±2.0mm

Courtesy of FORD MOTOR COMPANY

Adjustment

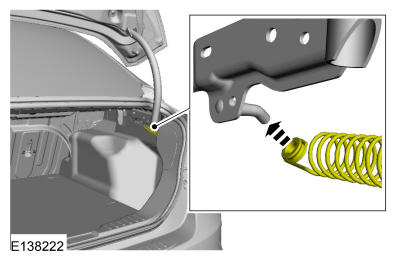

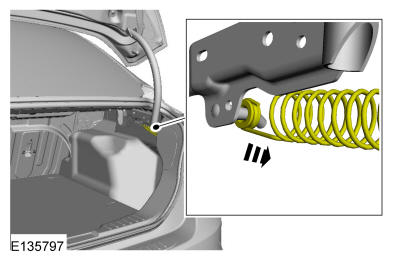

WARNING: Take extra care when handling the compressed spring.

On both sides. Position aside the spring.

Courtesy of FORD MOTOR COMPANY

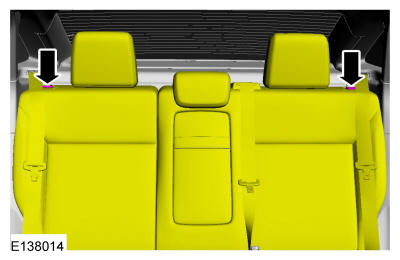

Release the seat locking tab and position the rear seat aside.

Courtesy of FORD MOTOR COMPANY

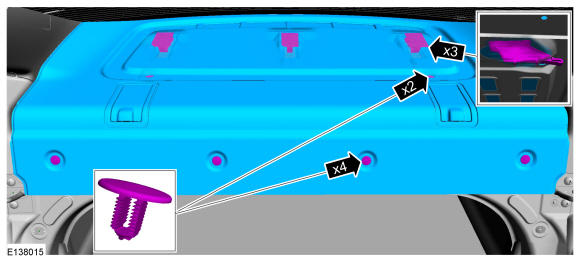

Release the clips, remove the push-pins and the loadspace trim panel.

Courtesy of FORD MOTOR COMPANY

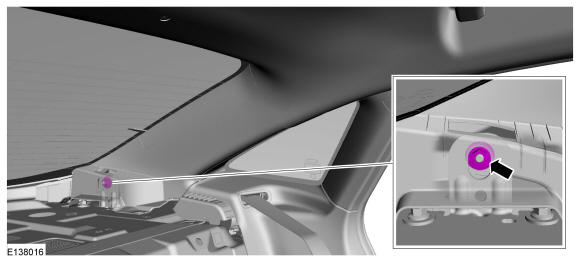

On both sides. Loosen the nuts. Loosen: 2 turn(s)

Courtesy of FORD MOTOR COMPANY
NOTE: Take extra care when handling the component.

Adjust the luggage compartment lid bracket.

Courtesy of FORD MOTOR COMPANY
On both sides. Tighten the nuts.
Torque

: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
WARNING: Take extra care when handling the compressed spring.

On both sides. Install the spring.

Courtesy of FORD MOTOR COMPANY
Install the loadspace trim panel, the clips and the push-pins.

Courtesy of FORD MOTOR COMPANY
Position the rear seat.

Courtesy of FORD MOTOR COMPANY
