Liftgate Alignment

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Adjustment

  1. WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions .

    GFD269910Courtesy of FORD MOTOR COMPANY
  2. Remove the liftgate striker bolts and striker.

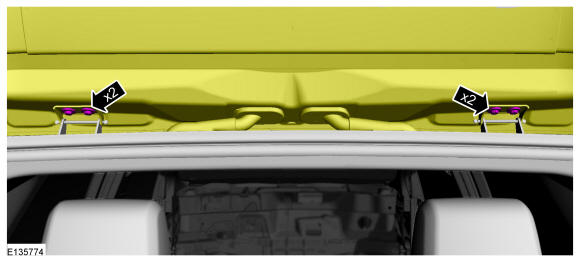

  3. Loosen the 4 liftgate hinge-to-liftgate bolts until the liftgate is able to move slightly.
    GFD269911Courtesy of FORD MOTOR COMPANY
  4. Align the liftgate to the body. Refer to: Body and Frame .
  5. Tighten the 4 liftgate hinge-to-liftgate bolts.

    Torque

    : 97 lb.in (11 Nm)

    GFD269911Courtesy of FORD MOTOR COMPANY
  6. Install and align the liftgate striker and bolts.
GFD269910Courtesy of FORD MOTOR COMPANY
