Liftgate Alignment - RS
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Inspection
- Check liftgate-to-body dimensions. Refer to: Body and Frame .
Adjustment
- Remove the loadspace floor trim panel.
- Disconnect the electrical connector, remove the retaining disc and the subwoofer speaker.

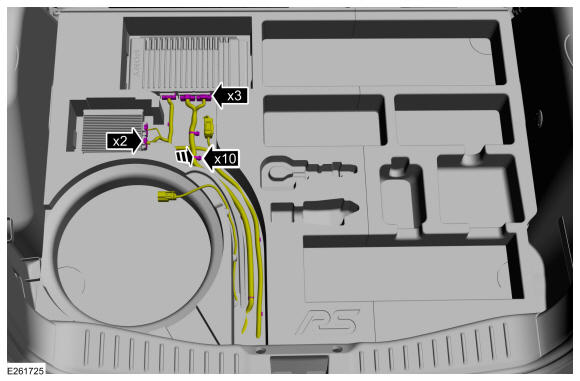

- Disconnect DSP and DACMC electrical connectors. Detach the wire harness retainers and position aside the wiring harness.

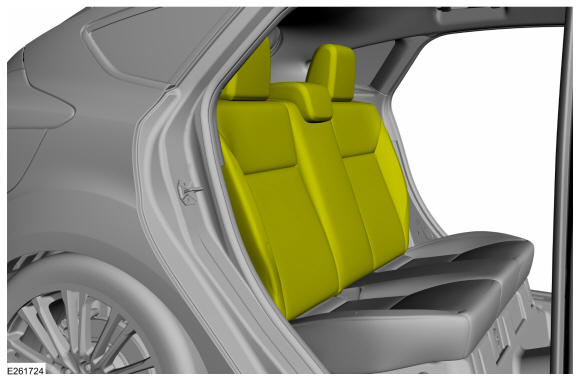

- Fold down the rear seatbacks.

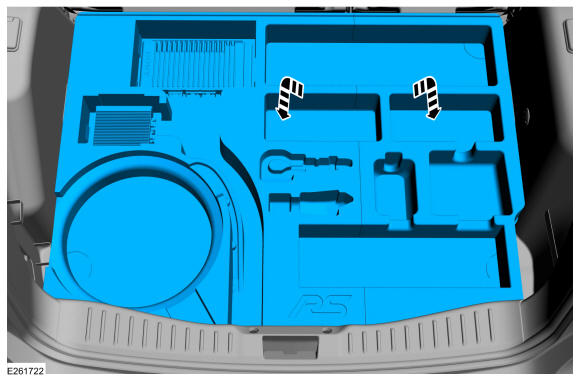

- Remove the rear cargo foam sections.
- Remove the luggage compartment opening trim panel.
- Position the weatherstrip aside.
- Remove the push-pins and release the clips.
- Remove the liftgate striker bolts and striker.
- Loosen the liftgate hinge-to-liftgate bolts until the liftgate is able to move slightly.
- Adjust the liftgate to specification. Refer to: Body and Frame .
- Tighten the liftgate hinge-to-liftgate bolts.
Torque
: 97 lb.in (11 Nm)
- Install and align the liftgate striker and bolts.
- Install the luggage compartment opening trim panel.
- Install the clips and the push-pins.
- Install the weatherstrip.
- Install the rear cargo foam sections.
- Return the rear seatbacks to original position.
- Position the wiring harness, attach the wire harness retainers and connect the DACMC and DSP electrical connectors.
- Install subwoofer speaker, install the retaining disc and connect the electrical connector.
- Install the loadspace floor trim panel.
- Inspect the body-to-liftgate door dimensions. Refer to: Body and Frame .
