Hood Alignment

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Adjustment

WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions .

Left-to-right and front-to-rear adjustments

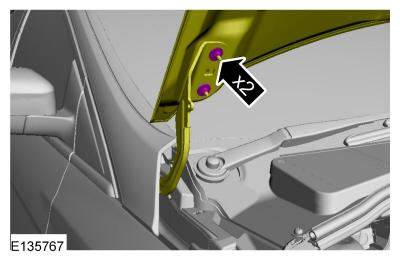

On both sides, loosen 2 turns.

Courtesy of FORD MOTOR COMPANY

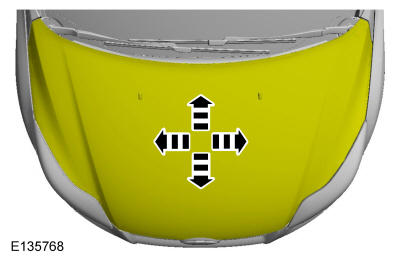

Refer to: BODY AND FRAME .

Courtesy of FORD MOTOR COMPANY
On both sides.
Torque

: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

Height adjustment
Refer to: FENDER SPLASH SHIELD .

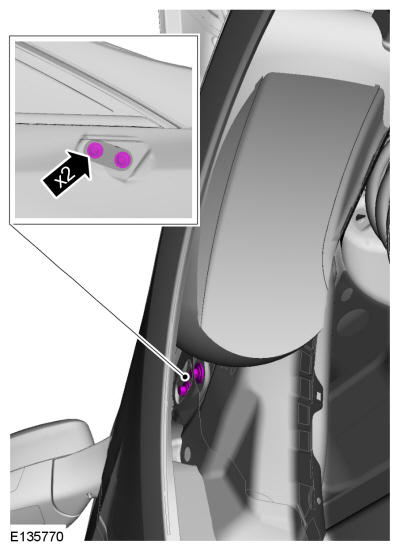

On both sides, loosen 2 turns.

Courtesy of FORD MOTOR COMPANY
On both sides, loosen 2 turns.

Courtesy of FORD MOTOR COMPANY

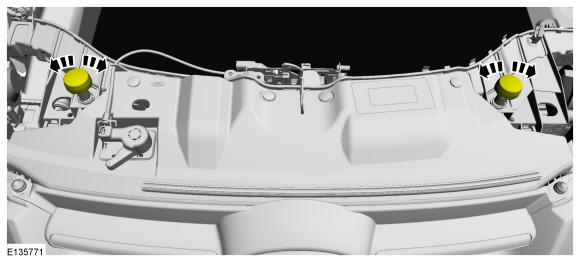

Refer to: BODY AND FRAME

Courtesy of FORD MOTOR COMPANY
On both sides.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
On both sides.

Courtesy of FORD MOTOR COMPANY
