Remote Function Actuator (RFA) Module: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: If installing a new RFA module, verify at least 2 of the vehicle keys are available prior to carrying out this procedure.
NOTE: If installing a new module, it is necessary to upload the module configuration information to the diagnostic scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Carry out the PMI procedure for the RFA module. Refer to: Module Configuration - System Operation and Component Description .
1. Remove the glove compartment screws.
  Torque

  : 18 lb.in (2 Nm)
2. NOTE: If equipped.

  Disconnect the electrical connectors and remove the glove compartment.
Courtesy of FORD MOTOR COMPANY

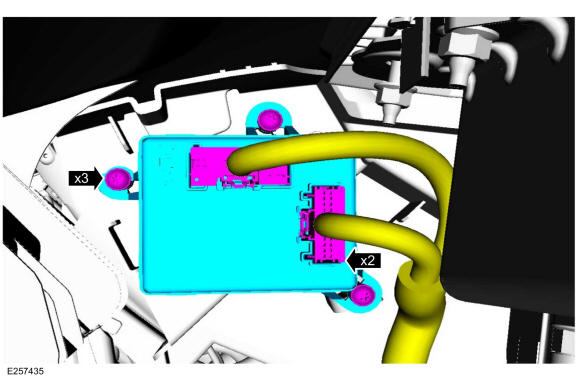

Disconnect the electrical connectors and remove the screws. Remove the RFA module.

Courtesy of FORD MOTOR COMPANY
