Door Module: Removal
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions .
- Remove the door trim panel. Refer to: Front Door Trim Panel . Refer to: REAR DOOR TRIM PANEL
-

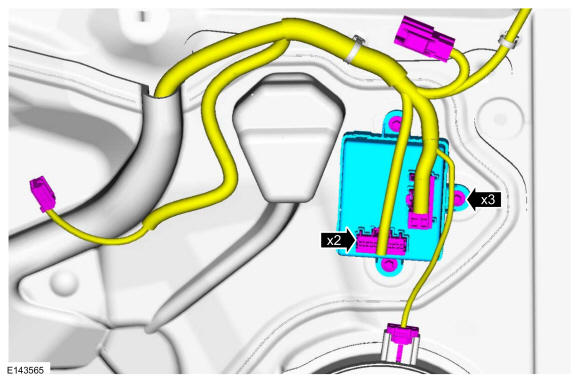

- Remove the bolts and the DM.
- Disconnect the electrical connectors.
Torque
: 18 lb.in (2 Nm)
