Body Control Module (BCM): Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: If installing a new BCM, verify at least 2 of the vehicle keys are available prior to carrying out this procedure.

NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Upload the module configuration information from the BCM into the scan tool by following the scan tool on screen instructions. For additional information, Refer to: Module Configuration - System Operation and Component Description .
Remove the 2 instrument panel insulator retainers and the instrument panel insulator.

Courtesy of FORD MOTOR COMPANY
Release the 3 RH instrument panel side trim panel clips and remove the side trim panel.

Courtesy of FORD MOTOR COMPANY

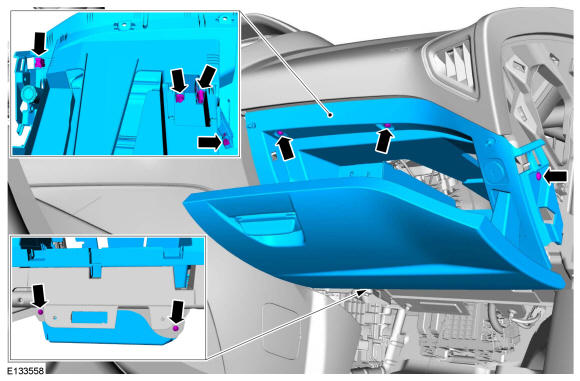

Remove the 5 screws and the glove box cover.

Courtesy of FORD MOTOR COMPANY
Remove the BCM.

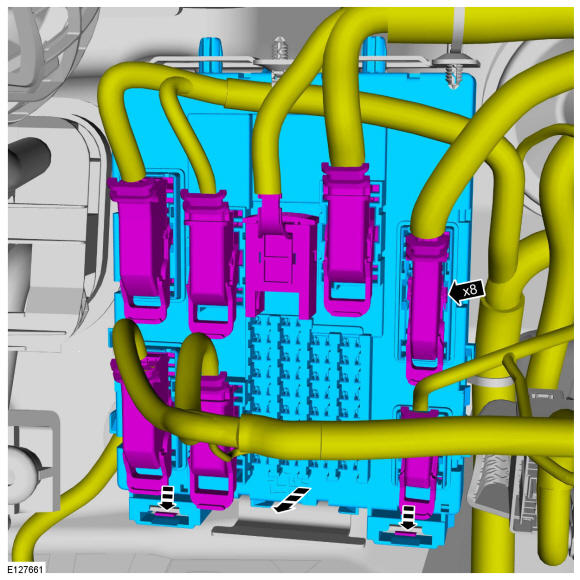

Disconnect the BCM electrical connectors and remove the BCM.

Courtesy of FORD MOTOR COMPANY
