Image Processing Module A (IPMA): Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This step is only necessary if the IPMA is being replaced.

NOTE: If installing a new IPMA, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new IPMA after installation.

Using a diagnostic scan tool, begin the PMI process for the IPMA following the onscreen instructions.
Remove the IPMA covers.

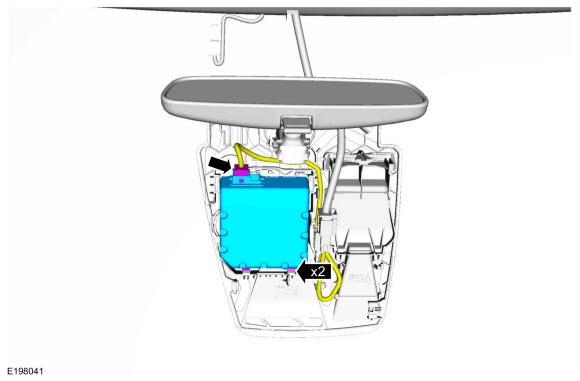

Remove the IPMA.

Courtesy of FORD MOTOR COMPANY
