Passive Anti-Theft System (PATS) Rear Antenna: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the following items:

    1. On both sides, remove the rear seat backrest. Refer to: Rear Seat Backrest .
    2. On both sides, remove the C-pillar lower trim panel. Refer to: C-Pillar Lower Trim Panel .

  2. Remove the spare tire cover.
    GFD269585Courtesy of FORD MOTOR COMPANY

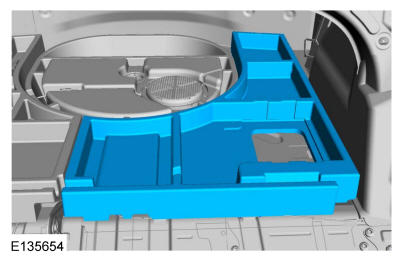

  3. Remove the LH foam insert.
    GFD269847Courtesy of FORD MOTOR COMPANY

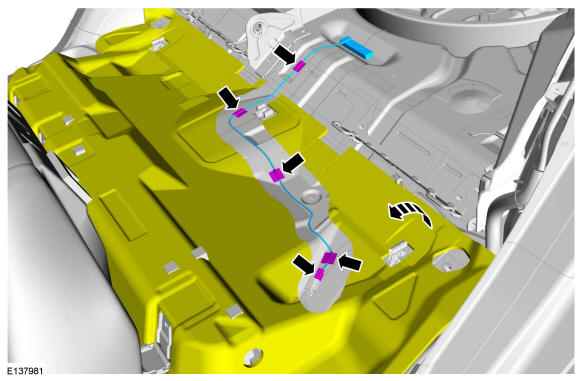

  4. Position the carpet back, release the tape, disconnect the electrical connector and remove the PATS rear antenna.
GFD269848Courtesy of FORD MOTOR COMPANY
