Passive Anti-Theft System (PATS) Front Antenna: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the HVAC control module. Refer to: Heating, Ventilation and Air Conditioning (HVAC) Control Module .

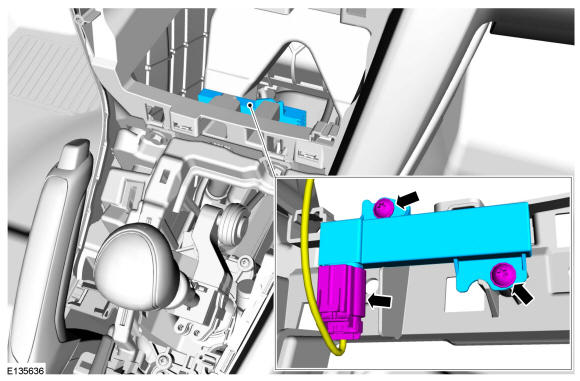

  2. Remove the retainers, disconnect the electrical connector and remove the PATS front antenna.
GFD269846Courtesy of FORD MOTOR COMPANY
