Passive Anti-Theft System (PATS) Center Antenna: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the floor console. Refer to: Floor Console - Vehicles With: Center Armrest .

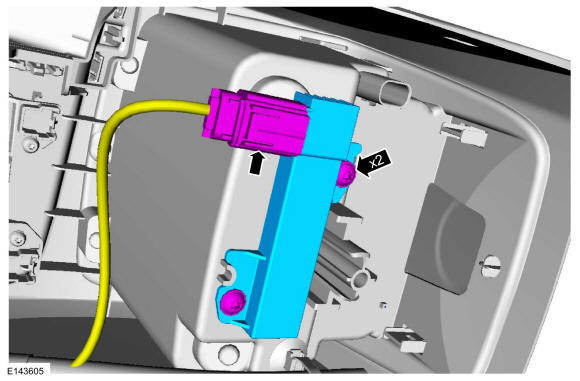

  2. Remove the retainers, disconnect the electrical connector and remove the PATS center antenna.
GFD269845Courtesy of FORD MOTOR COMPANY
