Passive Anti-Theft System (PATS) Transceiver: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions .

  2. Remove the steering column shrouds. Refer to: STEERING COLUMN SHROUDS

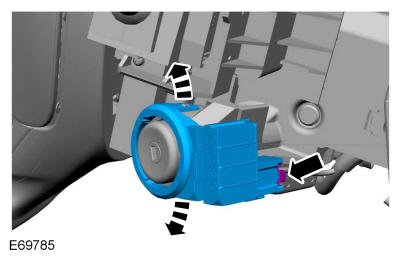

  3. Disconnect the electrical connector, release the tabs and remove the PATS transceiver.
GFD269838Courtesy of FORD MOTOR COMPANY
