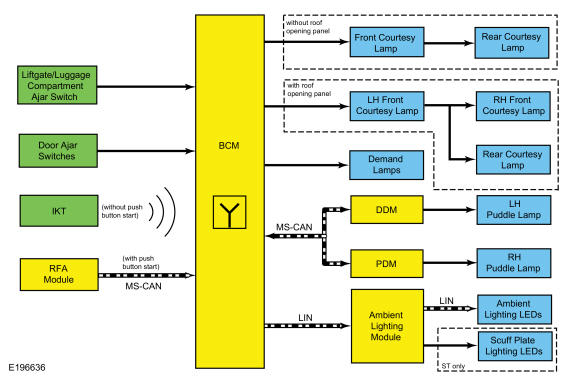

System Diagram
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | LIN |
| 2 | BCM |
| 3 | MS-CAN |
| 4 | (with push button start) |
| 5 | RFA module |
| 6 | Front courtesy lamp |
| 7 | LIN |
| 8 | Rear courtesy lamp |
| 9 | MS-CAN |
| 10 | IKT |
| 11 | (without push button start) |
| 12 | LH front courtesy lamp |
| 13 | DDM |
| 14 | RH front courtesy lamp |
| 15 | with roof opening panel |
| 16 | LH puddle lamp |
| 17 | RH puddle lamp |
| 18 | Ambient lighting Light Emitting Diodes (LEDs) |
| 19 | Demand lamps |
| 20 | PDM |
| 21 | Ambient lighting module |
| 22 | without roof opening panel |
| 23 | Door ajar switches |
| 24 | Liftgate/Luggage compartment ajar switch |
| 25 | Rear courtesy lamp |
| 26 | Scuff plate lighting Light Emitting Diodes (LEDs) |
| 27 | ST only |
