Rear Lamp Bulb - 5-Door: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear lamp assembly. Refer to: Rear Lamp Assembly - 5-Door  .
  2. Remove the rear lamp assembly bulb.

    1. Remove the bulb holder from the rear lamp assembly.
    2. Remove the bulbs as necessary.

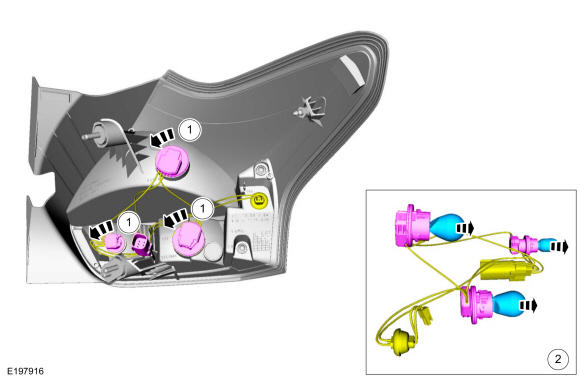

GFD269819Courtesy of FORD MOTOR COMPANY
