Rear Lamp Bulb - 4-Door: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Outer

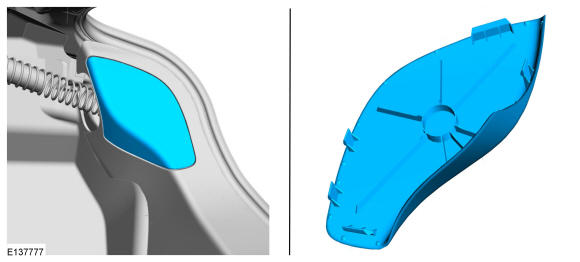

Remove the outer rear lamp access panel.

Courtesy of FORD MOTOR COMPANY

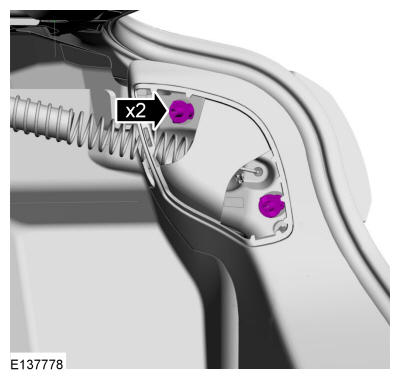

Remove the rear lamp assembly nuts.

Courtesy of FORD MOTOR COMPANY

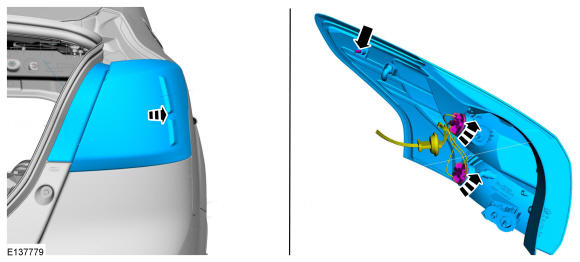

Remove the outer rear lamp assembly.
1. Position the rear lamp assembly outward.
2. Remove the bulb holders.
3. Remove the outer rear lamp assembly bulbs as necessary.
Courtesy of FORD MOTOR COMPANY

Center
Remove the push pins and the decklid trim panel.

Courtesy of FORD MOTOR COMPANY

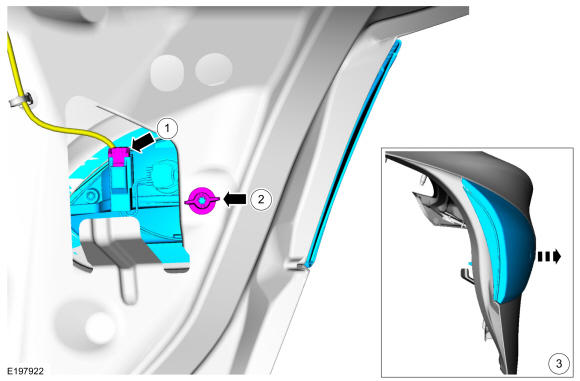

Remove the center rear lamp assembly.
1. Disconnect the electrical connector.
2. Remove the center rear lamp nut.
3. Remove the center rear lamp assembly.
Courtesy of FORD MOTOR COMPANY

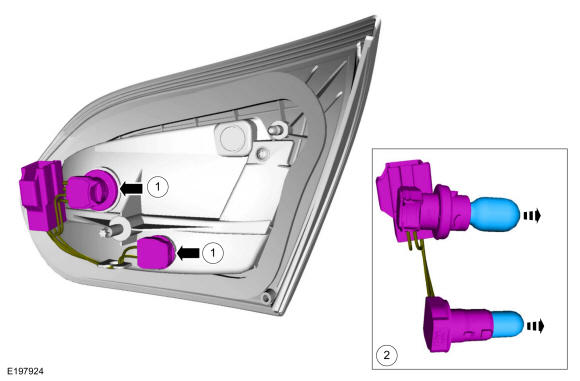

Remove the bulbs as necessary.
1. Remove the bulb holders.
2. Remove the bulbs.

Courtesy of FORD MOTOR COMPANY
