Rear Lamp Assembly - 5-Door: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

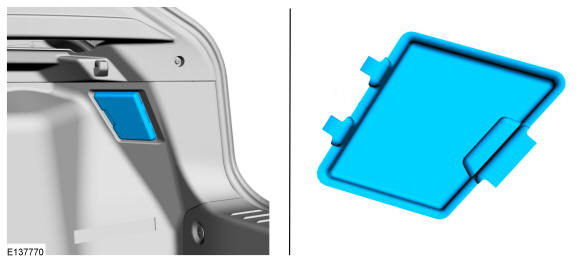

    • Remove the rear lamp access panel.
    GFD269814Courtesy of FORD MOTOR COMPANY

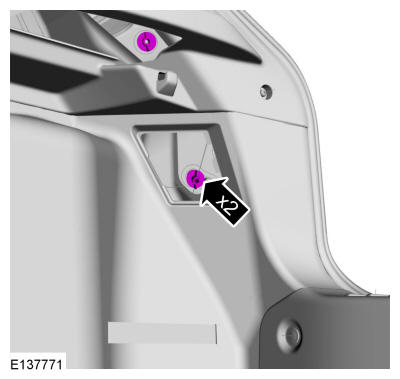

    • Remove the plastic nuts.
    GFD269815Courtesy of FORD MOTOR COMPANY

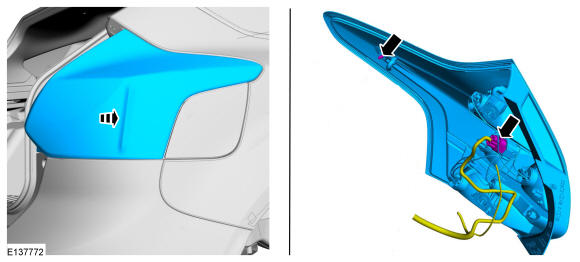

    • Position the rear lamp assembly, disconnect the electrical connector and remove the rear lamp assembly.
GFD269816Courtesy of FORD MOTOR COMPANY
