High Mounted Stoplamp - 4-Door: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.
NOTE: Removal steps in this procedure may contain installation details.

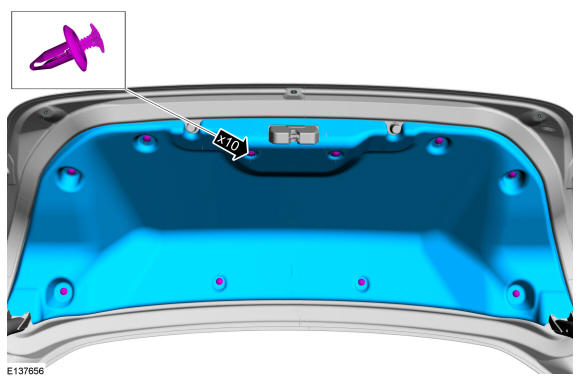

  1. Remove the push pins and the decklid interior trim panel.
    GFD269808Courtesy of FORD MOTOR COMPANY

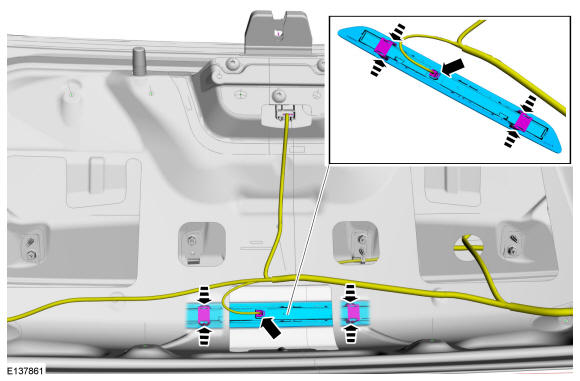

  2. Remove the high mounted stop lamp.

    • Disconnect the high mounted stoplamp electrical connector.

    • Release the tabs.

GFD269809Courtesy of FORD MOTOR COMPANY
